item: 15363
The Pegler type V912 is a cast iron strainer which is intended to protect pipework and equipment from debris in the fluid by filtering it through a strainer. The valves are self-acting by collecting the debris into a mesh bucket. It is complete with flanged connections and available in sizes DN65 to DN350.
Max operating pressure PN16
potable water
heating
cooling
commercial building
industry
WRAS
label
value
label
d1
value
114.0
label
DN1
value
DN100
label
l1
value
273
label
z1
value
77
label
d2
value
114.0
label
DN2
value
DN100
label
l2
value
77
label
z2
value
273
label
n2
value
8
label
k2
value
180
label
b2
value
22
label
d2-2
value
18
label
D2
value
220
label
V
value
110
label
D1
value
220
label
a
value
45
label
angle
value
45
color
blue
materials
cast iron (ASTM A536 65-45-12)
finishing
primer/paint
shape
straight (45º)
connection type
flange
pressure rating (PN)
PN 16
sealing
NBR (Nitrile)
product group
valves (strainers)
ETIM class
EC010151 Pipeline strainer
HS code
84818019
brand
Pegler
series
Strainer
product type
V912
UNSPS
40142505
item

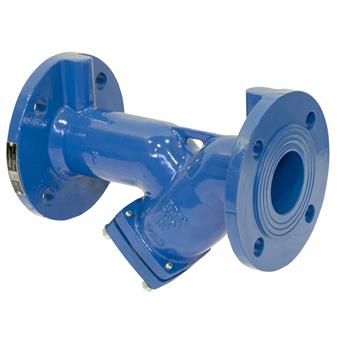

Pegler y-pattern strainer DN100 PN16
item number with gtin
15363 (05022050078506)
product number with gtin
15363 (05022050555588)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
V912 - Pegler y-pattern strainer
size
DN100
weight
16.3 kg
dimensions
350x220x315 mm
packaging
unpackaged (1 pce)
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
120 °C
peak medium temperature
120 °C
Kvs-value
229
Mesh size
1.5 mm
label
value
label
ETIM class
label
Diameter bolt hole
value
18
label
Diameter bolt hole (imperial)
value
0.71"
label
Shape
value
Pipeline strainer
label
Housing material
value
Cast iron
label
Nominal diameter
value
DN 100
label
Material sealing
value
NBR (nitrile rubber)
label
Outer pipe diameter all connections
value
114mm
label
Outer pipe diameter all connections (imperial)
value
4.49"
label
Connection
value
Flange
label
With coupling
value
No
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
Flange standard
value
DIN
label
Max. operating pressure
value
16bar
label
Max. operating pressure (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-10°C - 120°C
label
Medium temperature (continuous) (imperial)
value
14°F - 248°F
label
With drain possibility (connection)
value
No
label
Kvs value
value
229
label
Length
value
350mm
label
Length (imperial)
value
13.78"
label
Length of connection 1
value
273mm
label
Length of connection 1 (imperial)
value
10.75"
label
Working length connection 1
value
77mm
label
Working length connection 1 (imperial)
value
3.03"
label
Length of connection 2
value
77mm
label
Length of connection 2 (imperial)
value
3.03"
label
Working length connection 2
value
273mm
label
Working length connection 2 (imperial)
value
10.75"
label
Height
value
315mm
label
Height (imperial)
value
12.4"
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
carbon footprint (A-C) embodied carbon
66.95kgCO2e
data source
TM65
