item: 103333
Pegler Valve type PSU1070/125LS is a bronze full way gate valve designed for preventing back flow in pipework, these valves have non-rising internal threaded stems and come complete with a lock shield for easy operation using a key, this valve has an adapted VSH Xpress and a Xpress union connection and is available in sizes 15-54mm
all variants WRAS approved (up to 85°C)
cooling
heating
potable water
steam
industry
commercial building
NSF
WRAS
KIWA
label
value
label
d1
value
28.0
label
DN1
value
DN15
label
l1
value
59
label
z1
value
38
label
slw1
value
43
label
d2
value
28.0
label
DN2
value
DN15
label
l2
value
88
label
z2
value
62
label
slw2
value
43
label
M
value
22
label
H
value
100
label
Y
value
29
label
V
value
61
label
U
value
53
label
a
value
90
item

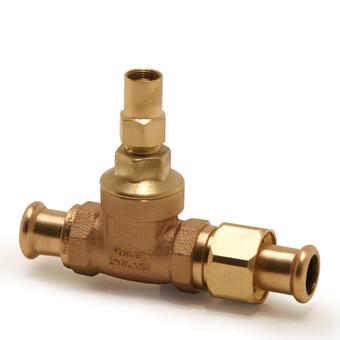

VSH XPress gate valve LS with union FF 15 (DN15)
item number with gtin
103333 (05022050251695)
product number with gtin
103333 (05022050568137)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15 (DN15)
weight
1.04 kg
dimensions
145x50x124 mm
packaging
bag (1 pce)
color
bronze
materials
bronze (EN CC499K)
finishing
none
shape
straight
connection type
press (M), press (M)
pressure rating (PN)
PN 16
sealing
PTFE
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
110 °C
peak medium temperature
110 °C
Kvs-value
57
product group
afsluiters (PTFE)
ETIM class
EC010163 Gate valvebrand
VSH
series
XPress Gate Valve
product type
PSU1070/125LS
UNSPS
40141613
label
value
label
etim-class
value
EC010163 Gate valvelabel
Housing material
value
Bronze
label
Nominal diameter
value
DN 15
label
Outer pipe diameter all connections
value
28mm
label
Outer pipe diameter all connections (imperial)
value
1.1"
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
Yes
label
Connection 2
value
Press sleeve
label
With coupling connection 2
value
Yes
label
Contour code
value
M
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-10°C - 110°C
label
Medium temperature (continuous) (imperial)
value
14°F - 230°F
label
Surface protection
value
Untreated
label
Operation
value
Key
label
With position indicator
value
Yes
label
Spindle and/or hand wheel rising
value
No
label
With waste fitting
value
No
label
Kvs value
value
57
label
Length of connection 1
value
59mm
label
Length of connection 1 (imperial)
value
2.32"
label
Working length connection 1
value
38mm
label
Working length connection 1 (imperial)
value
1.5"
label
Length of connection 2
value
88mm
label
Length of connection 2 (imperial)
value
3.46"
label
Working length connection 2
value
62mm
label
Working length connection 2 (imperial)
value
2.44"
label
Handle/hand wheel height
value
29mm
label
Handle/hand wheel height (imperial)
value
1.14"
label
Length of handle/diameter of hand wheel
value
22mm
label
Length of handle/diameter of hand wheel (imperial)
value
0.87"
label
VdS quality mark
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
carbon footprint (A-C) embodied carbon
5.18kgCO2e
data source
TM65
