item: 101071
Pegler Valve type 10751PT is a bronze full way gate valve these valves have non-rising internal threaded stems and use a wheel handle making them easy to operate, this valve has female Parallel threaded connections and is available in sizes ½” to 3”
Operating Temperature Between -10°C and 180°C
steam
potable water
heating
cooling
industry
commercial building
WRAS
NSF

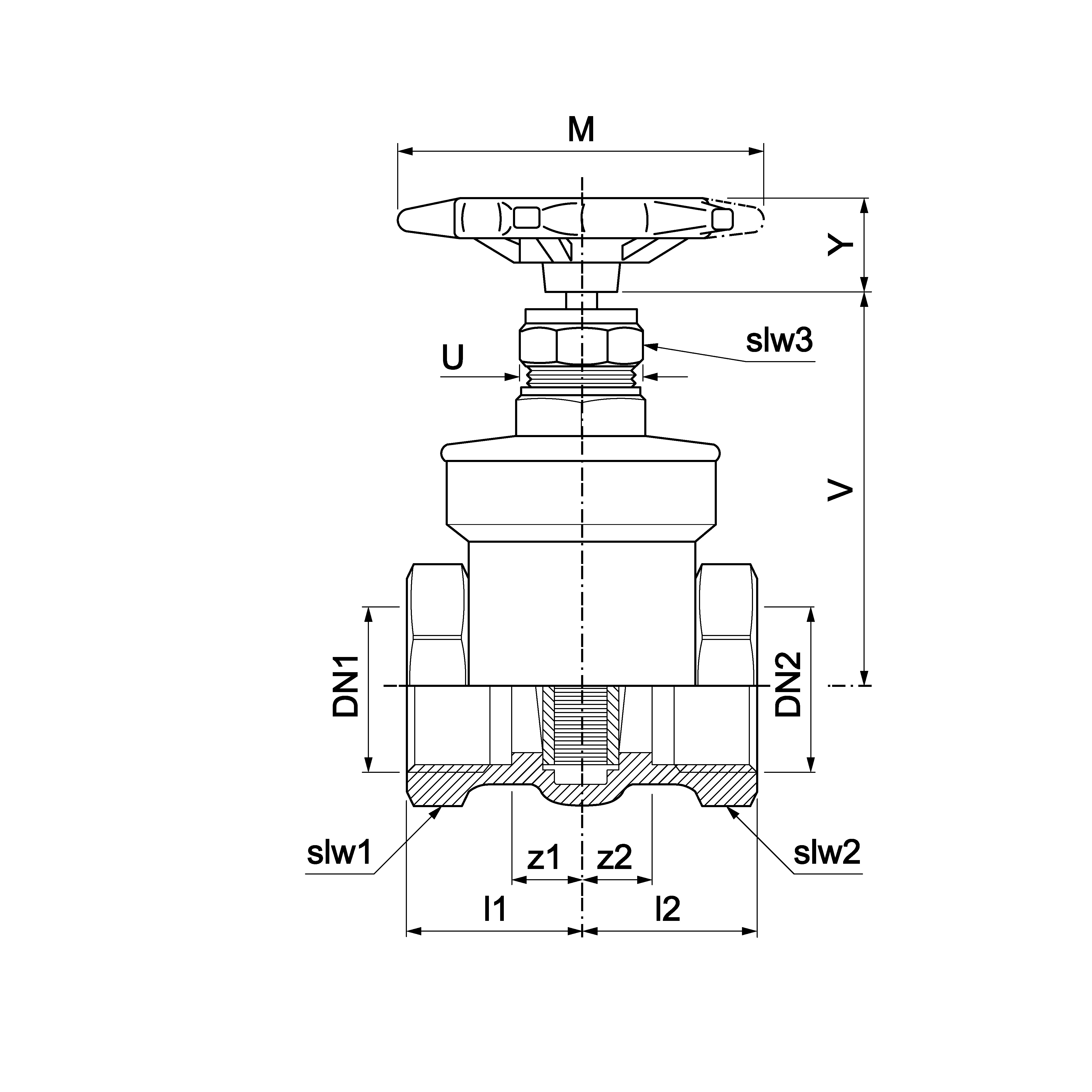

label
value
label
d1
value
32.0
label
DN1
value
3/4" (DN20)
label
l1
value
25
label
z1
value
11
label
slw1
value
33
label
d2
value
32.0
label
DN2
value
3/4" (DN20)
label
l2
value
25
label
z2
value
11
label
slw2
value
33
label
M
value
60
label
Y
value
18
label
V
value
70
label
U
value
25
label
a
value
90
item
Pegler gate valve FF G3/4" (DN20) blue
item number with gtin
101071 (05022050412997)
product number with gtin
101071 (05022050411655)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
G3/4 (Blue)
weight
0.35 kg
dimensions
107x60x60 mm
packaging
box (10 pce)
color
bronze
materials
bronze (EN CC491K)
finishing
none
shape
straight
connection type
G - female thread gas cylindrical (BSPP), G - female thread gas cylindrical (BSPP)
pressure rating (PN)
PN 20
sealing
PTFE
max operating pressure liquid
20 bar
min. medium temperature
-10 °C
max medium temperature
180 °C
peak medium temperature
180 °C
Kvs-value
18.65
product group
valves (PTFE)
ETIM class
EC010163 Gate valveHS code
84818069
brand
Pegler
series
Gate Valve
product type
10751PT
UNSPS
40141613
label
value
label
etim-class
value
EC010163 Gate valvelabel
Housing material
value
Bronze
label
Outer pipe diameter all connections
value
32mm
label
Outer pipe diameter all connections (imperial)
value
1.26"
label
Connection 1
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
With coupling connection 1
value
No
label
Connection 2
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
With coupling connection 2
value
No
label
Article pressure rating
value
PN 20
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-10°C - 180°C
label
Medium temperature (continuous) (imperial)
value
14°F - 356°F
label
Surface protection
value
Untreated
label
Operation
value
Hand wheel
label
With position indicator
value
No
label
Spindle and/or hand wheel rising
value
No
label
With waste fitting
value
No
label
Kvs value
value
18.65m³/h
label
Length of connection 1
value
25mm
label
Length of connection 1 (imperial)
value
0.98"
label
Working length connection 1
value
11mm
label
Working length connection 1 (imperial)
value
0.43"
label
Length of connection 2
value
25mm
label
Length of connection 2 (imperial)
value
0.98"
label
Working length connection 2
value
11mm
label
Working length connection 2 (imperial)
value
0.43"
label
Handle/hand wheel height
value
18mm
label
Handle/hand wheel height (imperial)
value
0.71"
label
Length of handle/diameter of hand wheel
value
60mm
label
Length of handle/diameter of hand wheel (imperial)
value
2.36"
label
VdS quality mark
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
carbon footprint (A-C) embodied carbon
2.64kgCO2e
