item: 10-51813
heating
cooling
residential
commercial building
industry
RAL gütezeichen rohrbefestigung
materials
steel
finishing
galvanized (electrolytically zincplated)
product group
Fastening (double screw)
ETIM class
EC010049 Two-part bracket round
HS code
73089098
brand
IPS FlamcoFix
series
Fastening clips
product type
BSF
item

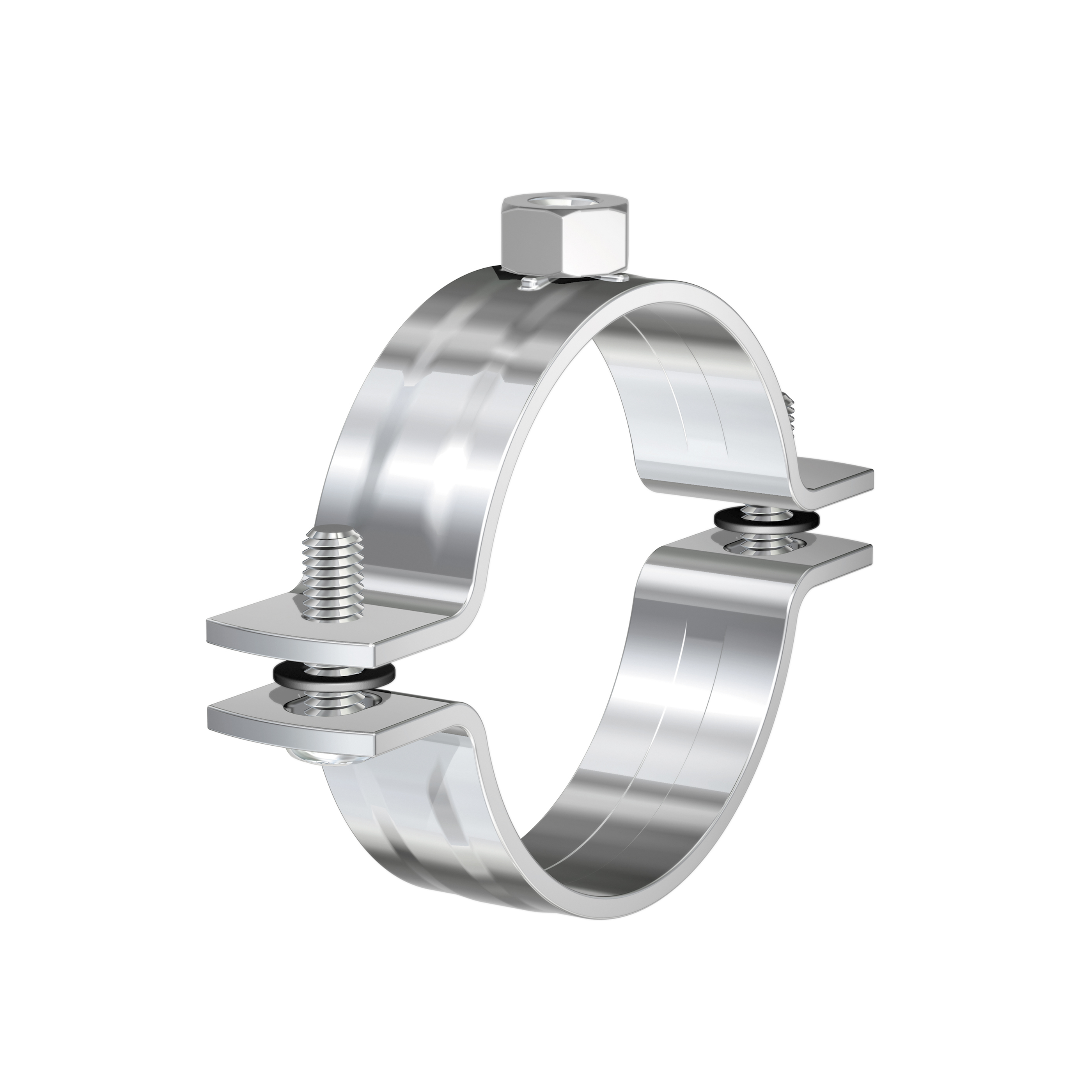

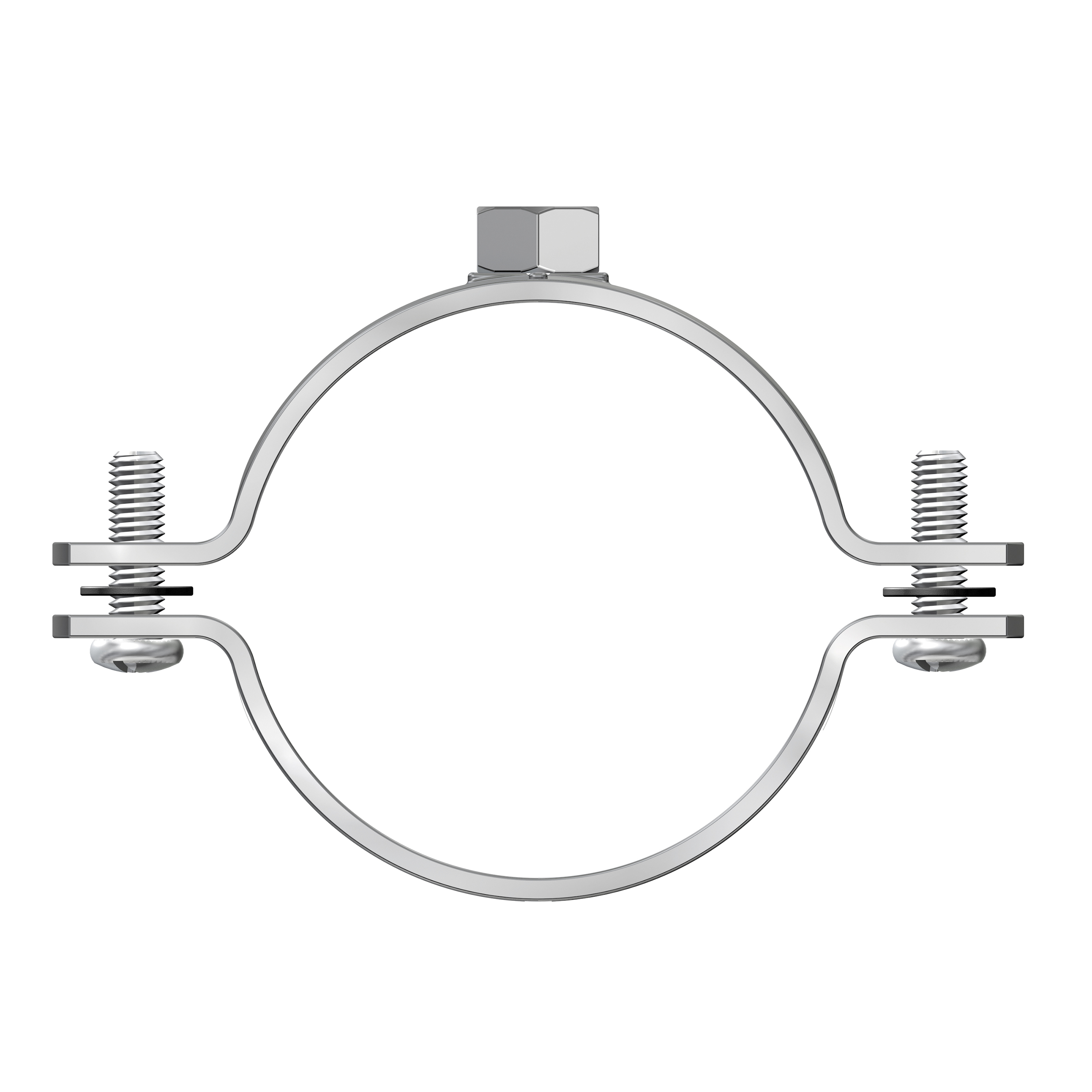

FlamcoFix BSF clip G1/2"-M10 x 101.5-110
item number with gtin
10-51813 (08719313020439)
product number with gtin
10-51813 (08712874518131)
manufacturer
Wemefa
item group
BSF - FlamcoFix BSF Clips
size
G1/2-M10 x 101.5-110
weight
0.23 kg

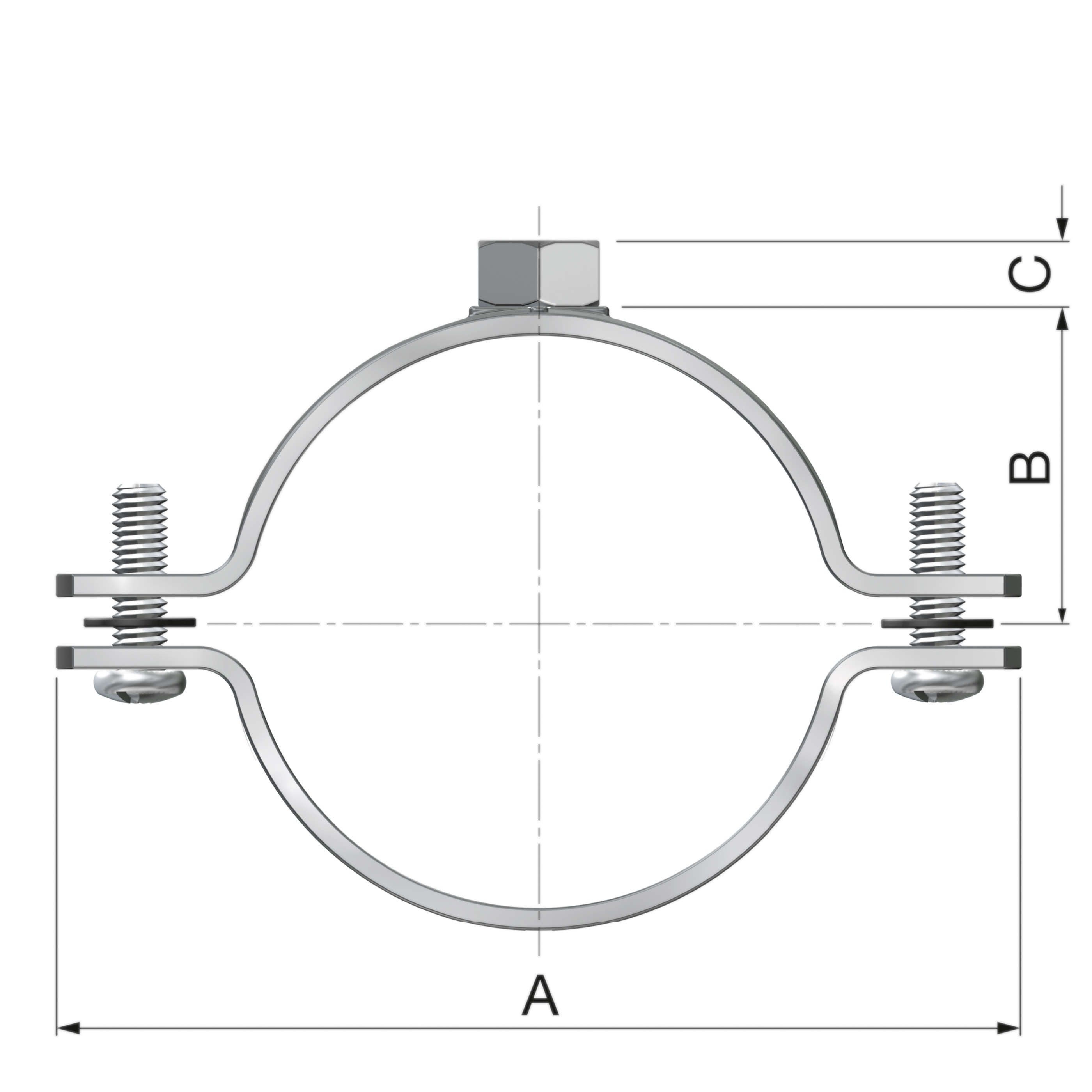

dimensions
161x126x20 mm
packaging
carton (25 pce)
min. medium temperature
-40 °C
max medium temperature
250 °C
label
value
label
ETIM class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Outer pipe diameter
value
101.5mm - 110mm
label
Inlay damping value
value
0dB(A)
label
Permitted work load
value
2500N
label
Connection facility
value
Internal thread/external thread
label
Connection size, connection facility
value
1/2 inch - M10
label
Lock facility
value
Double screw
label
Suitable for number of pipes
value
1
label
Width
value
161mm
label
Width (imperial)
value
6.34"
label
Height
value
20mm
label
Height (imperial)
value
0.79"
label
Depth
value
161mm
label
Depth (imperial)
value
6.34"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
No
label
Suitable for copper tube
value
No
label
Suitable for aluminium tube
value
No
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
No
label
Medium temperature (continuous)
value
-40°C - 250°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 482°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
