item: 10-38840
potable water
natural gas
heating
cooling
compressed air
vacuum
residential
commercial building
industry
no approvals available
label
value
label
DN1
value
M10
materials
steel
finishing
hot dip galvanized
product group
Fastening (double screw)
ETIM class
EC010049 Two-part bracket round
HS code
73089098
brand
FastFix
series
clips - lined
product type
BSI-HDG
item

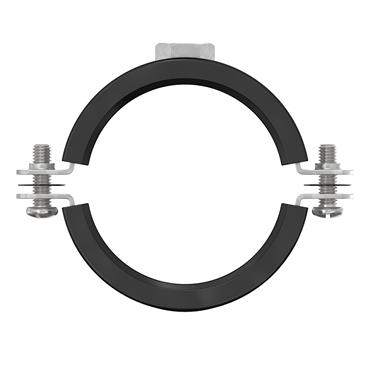

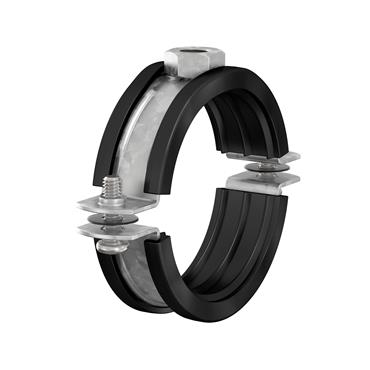

FastFix BSI clip M10 x 62-67 HDG
item number with gtin
10-38840 (08719313047498)
product number with gtin
10-38840 (08712874388406)
manufacturer
Wemefa
predecessor
38580 (08712874385801)item group
BSI-HDG - FastFix BSI-HDG M8/M10clips
size
M10 x 62-67 HDG
weight
0.13 kg
dimensions
94x113x23 mm
packaging
carton (50 pce)
min. medium temperature
-40 °C
max medium temperature
120 °C
label
value
label
ETIM class
label
Material
value
Steel
label
Surface protection
value
Hot-dip galvanised
label
Outer pipe diameter
value
62mm - 67mm
label
Inlay damping value
value
17dB(A)
label
Permitted work load
value
1300N
label
Connection facility
value
Internal thread
label
Connection size, connection facility
value
M10
label
Lock facility
value
Double screw
label
Suitable for number of pipes
value
1
label
Width
value
113mm
label
Width (imperial)
value
4.45"
label
Height
value
23mm
label
Height (imperial)
value
0.91"
label
Depth
value
93.5mm
label
Depth (imperial)
value
3.68"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
Yes
label
Suitable for copper tube
value
Yes
label
Suitable for aluminium tube
value
Yes
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
Yes
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
