item: 10-38371
potable water
natural gas
heating
cooling
compressed air
vacuum
residential
commercial building
industry
no approvals available
label
value
label
DN1
value
M8/M10
label
z3
value
59
materials
steel
finishing
galvanized (electrolytically zincplated)
product group
Fastening (snapper mounting)
ETIM class
EC011409 One-piece bracket
HS code
73089098
brand
FastFix
series
clips - lined
product type
BSH
item

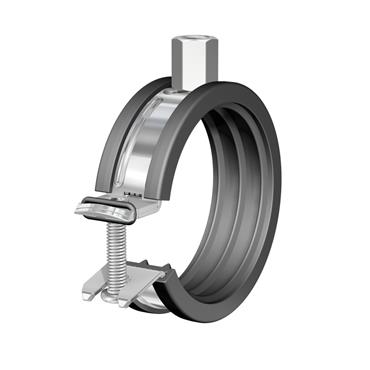

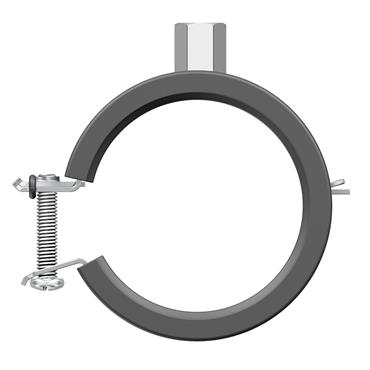

FastFix BSH clip M8-M10 x 68-74
item number with gtin
10-38371 (08719313012939)
product number with gtin
10-38371 (08712874383715)
manufacturer
Wemefa
item group
BSH - FastFix BSH M8/M10 Clips
size
M8-M10 x 68-74
weight
0.15 kg
dimensions
100x110x20 mm
packaging
carton (50 pce)
min. medium temperature
-40 °C
max medium temperature
120 °C
label
value
label
ETIM class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Outer pipe diameter
value
68mm - 74mm
label
Outer pipe diameter (imperial)
value
2.67717" - 2.91339"
label
Shape
value
Bracket/wall bracket
label
Permitted work load
value
1300N
label
Permitted work load (imperial)
value
2866.01lb
label
Inlay damping value
value
15dB(A)
label
Connection facility
value
Internal thread
label
Connection size, connection facility
value
M8/M10
label
Flexible connection facility
value
No
label
Lock facility
value
Click in mounting
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for thin-walled pipe
value
Yes
label
Suitable for stainless steel tube
value
Yes
label
Suitable for copper tube
value
Yes
label
Suitable for aluminium tube
value
Yes
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
No
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
