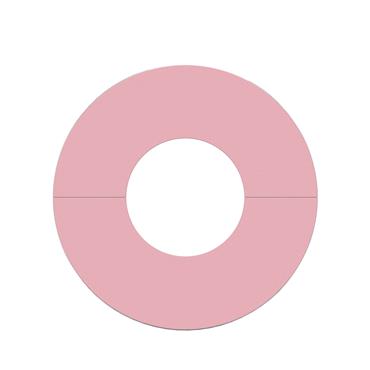

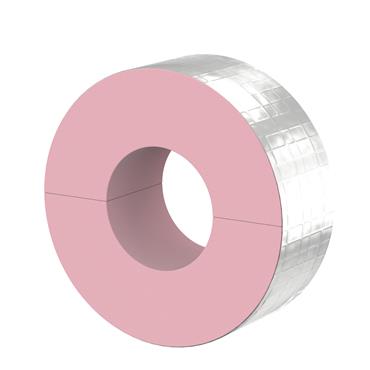

Product Image for FastFix Kooltherm 20x125 mm - 168 mm

item: 10-32779

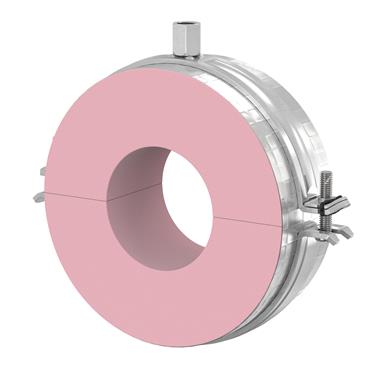

Phenolic insulation blocks to combine with specified FastFix clips. Use of insulation blocks will isolate the pipework from the pipe support and the surrounding environment. It will limit heat transfer from and to the pipework and prevent thermal bridging.

Insulation thicknesses available

Standard/stock = 15, 20, 25, 30, 35, 40, 45, 50
Additional thicknesses can be manufactured i.e. 60, 63, 65, 70, 75mm etc

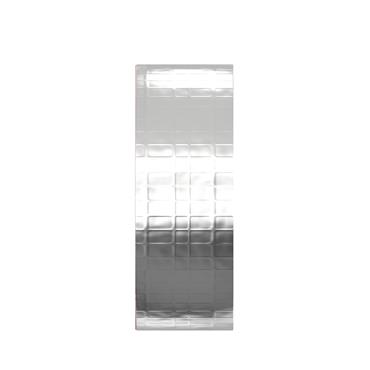

Faced with reinforced low vapour permeability aluminium foil.

Insulation value:

<0.03 W/(mk) up to 2",
<0.03W/(mk) up to 5",
<0.04W/(mk) up to 12".

Length

Kooltherm <168mm = 100mm
Kooltherm 168-322mm = 125mm
Kooltherm 323mm & above = 200mm

Density:

Kooltherm - <76mm: 60 kg/m3
Kooltherm - <114 mm: 80 kg/m3

Pressure resistance:

Kooltherm - 15 - 66 mm: 0,25 N/mm2
Kooltherm - 76 - 114 mm: 0,4 N/mm2

Temperature resistance: from -50 °C to +110 °C.
Fire rating: B/ BL - s1, d0.
Over 90% closed cell structure.
CE Marked in accordance with BS EN 14314:2009+A1:2013.
