VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM gasket

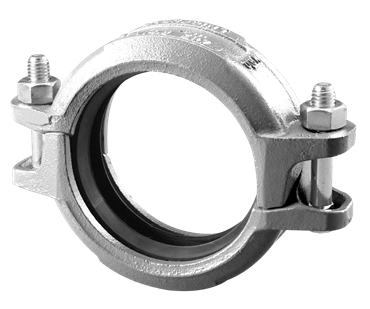

Product Image for VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM gasket

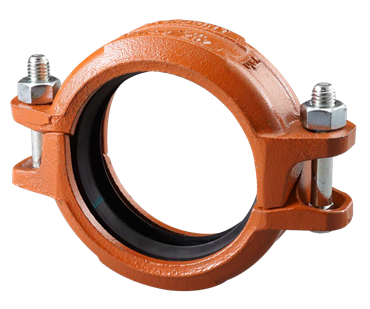

Product Image for VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM gasket

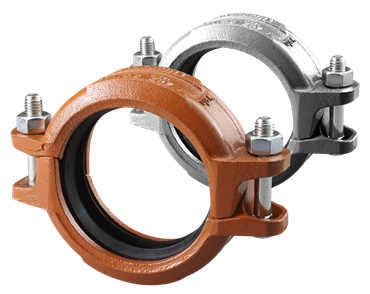

Product Image for VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM gasket
  • Navigation item for VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM gasket
  • Navigation item for VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM gasket
  • Navigation item for VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM gasket

group: Z07E

Z07E is the designation for model Z07 with a Grade E EPDM gasket. The VSH Shurjoint Model Z07 is an angle-pad design rigid coupling for general piping applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint that resists flexural and torsional loads. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

vacuum

vacuum

show all
show less

segments

industry

industry

commercial building

commercial building

residential

residential

datacenters

datacenters

fire protection

fire protection

show all
show less

approvals

UL

UL

ULc

ULc

FM

FM

VdS

VdS

LPCB

LPCB

QB (CSTBat)

QB (CSTBat)

CRN

CRN

show all
show less
  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM
  • sustainability

code

size

dimensions

weight

packaging

gtin

code

10Z070012E01

size

42.4 (DN32) orange ISO

dimensions

47x105x68 mm

weight

0.72 kg

packaging

carton (1 pce)

gtin

04710574610920

code

10Z070012E03

size

42.4 (DN32) galvanized ISO

dimensions

47x105x68 mm

weight

0.72 kg

packaging

carton (1 pce)

gtin

04710574610937

code

10Z070015E01

size

48.3 (DN40) orange ISO

dimensions

47x115x74 mm

weight

0.81 kg

packaging

carton (1 pce)

gtin

04710574611019

code

10Z070015E03

size

48.3 (DN40) galvanized ISO

dimensions

47x115x74 mm

weight

0.81 kg

packaging

carton (1 pce)

gtin

04710574611026

code

10Z070020E01

size

60.3 (DN50) orange ISO

dimensions

48x119x86 mm

weight

0.91 kg

packaging

carton (1 pce)

gtin

04710574611125

code

10Z070020E03

size

60.3 (DN50) galvanized ISO

dimensions

48x119x86 mm

weight

0.91 kg

packaging

carton (1 pce)

gtin

04710574611132

code

10Z070029E01

size

76.1 (DN65) orange ISO

dimensions

48x146x102 mm

weight

1.14 kg

packaging

carton (1 pce)

gtin

04710574611262

code

10Z070029E03

size

76.1 (DN65) galvanized ISO

dimensions

48x146x102 mm

weight

1.14 kg

packaging

carton (1 pce)

gtin

04710574611279

code

10Z070030E01

size

88.9 (DN80) orange ISO

dimensions

48x166x115 mm

weight

1.29 kg

packaging

carton (1 pce)

gtin

04710574611378

code

10Z070030E03

size

88.9 (DN80) galvanized ISO

dimensions

48x166x115 mm

weight

1.29 kg

packaging

carton (1 pce)

gtin

04710574611385

code

10Z070045E01

size

114.3 (DN100) orange ISO

dimensions

54x206x147 mm

weight

2 kg

packaging

carton (1 pce)

gtin

04710574611507

code

10Z070045E03

size

114.3 (DN100) galvanized ISO

dimensions

54x206x147 mm

weight

2 kg

packaging

carton (1 pce)

gtin

04710574611514

code

10Z070052E01

size

139.7 (DN125) orange ISO

dimensions

53x238x175 mm

weight

3.02 kg

packaging

carton (1 pce)

gtin

04710574611545

code

10Z070052E03

size

139.7 (DN125) galvanized ISO

dimensions

53x238x175 mm

weight

3.02 kg

packaging

carton (1 pce)

gtin

04710574611552

code

10Z070062E01

size

165.1 (DN150) orange ISO

dimensions

53x266x200 mm

weight

3.42 kg

packaging

carton (1 pce)

gtin

04710574611644

code

10Z070062E03

size

165.1 (DN150) galvanized ISO

dimensions

53x266x200 mm

weight

3.42 kg

packaging

carton (1 pce)

gtin

04710574611651

code

10Z070085E01

size

219.1 (DN200) orange ISO

dimensions

64x342x268 mm

weight

7.12 kg

packaging

carton (1 pce)

gtin

04710574611897

code

10Z070085E03

size

219.1 (DN200) galvanized ISO

dimensions

64x342x268 mm

weight

7.12 kg

packaging

carton (1 pce)

gtin

04710574611903

code

10Z0700A1001

size

273 (DN250) orange UNC

dimensions

65x396x327 mm

weight

10.37 kg

packaging

carton (1 pce)

gtin

08711985446937

code

10Z0700A1003

size

273 (DN250) galvanized UNC

dimensions

65x396x327 mm

weight

10.37 kg

packaging

carton (1 pce)

gtin

08711985447057

code

10Z0700A3001

size

323.9 (DN300) orange UNC

dimensions

65x452x377 mm

weight

11.8 kg

packaging

carton (1 pce)

gtin

08711985446944

code

10Z0700A3003

size

323.9 (DN300) galvanized UNC

dimensions

65x452x377 mm

weight

11.8 kg

packaging

carton (1 pce)

gtin

08711985447064

code

size

d1

DN1

l1

z1

d2

DN2

l2

z2

code

10Z070012E01

size

42.4 (DN32) orange ISO

d1

42.4

DN1

DN32

l1

24

z1

1

d2

42.4

DN2

DN32

l2

24

z2

1

code

10Z070012E03

size

42.4 (DN32) galvanized ISO

d1

42.4

DN1

DN32

l1

24

z1

1

d2

42.4

DN2

DN32

l2

24

z2

1

code

10Z070015E01

size

48.3 (DN40) orange ISO

d1

48.3

DN1

DN40

l1

24

z1

1

d2

48.3

DN2

DN40

l2

24

z2

1

code

10Z070015E03

size

48.3 (DN40) galvanized ISO

d1

48.3

DN1

DN40

l1

24

z1

1

d2

48.3

DN2

DN40

l2

24

z2

1

code

10Z070020E01

size

60.3 (DN50) orange ISO

d1

60.3

DN1

DN50

l1

24

z1

1

d2

60.3

DN2

DN50

l2

24

z2

1

code

10Z070020E03

size

60.3 (DN50) galvanized ISO

d1

60.3

DN1

DN50

l1

24

z1

1

d2

60.3

DN2

DN50

l2

24

z2

1

code

10Z070029E01

size

76.1 (DN65) orange ISO

d1

76.1

DN1

DN65

l1

24

z1

1

d2

76.1

DN2

DN65

l2

24

z2

1

code

10Z070029E03

size

76.1 (DN65) galvanized ISO

d1

76.1

DN1

DN65

l1

24

z1

1

d2

76.1

DN2

DN65

l2

24

z2

1

code

10Z070030E01

size

88.9 (DN80) orange ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

88.9

DN2

DN80

l2

24

z2

1

code

10Z070030E03

size

88.9 (DN80) galvanized ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

88.9

DN2

DN80

l2

24

z2

1

code

10Z070045E01

size

114.3 (DN100) orange ISO

d1

114.3

DN1

DN100

l1

27

z1

2

d2

114.3

DN2

DN100

l2

27

z2

2

code

10Z070045E03

size

114.3 (DN100) galvanized ISO

d1

114.3

DN1

DN100

l1

27

z1

2

d2

114.3

DN2

DN100

l2

27

z2

2

code

10Z070052E01

size

139.7 (DN125) orange ISO

d1

139.7

DN1

DN125

l1

27

z1

2

d2

139.7

DN2

DN125

l2

27

z2

2

code

10Z070052E03

size

139.7 (DN125) galvanized ISO

d1

139.7

DN1

DN125

l1

27

z1

2

d2

139.7

DN2

DN125

l2

27

z2

2

code

10Z070062E01

size

165.1 (DN150) orange ISO

d1

165.1

DN1

DN150

l1

27

z1

2

d2

165.1

DN2

DN150

l2

27

z2

2

code

10Z070062E03

size

165.1 (DN150) galvanized ISO

d1

165.1

DN1

DN150

l1

27

z1

2

d2

165.1

DN2

DN150

l2

27

z2

2

code

10Z070085E01

size

219.1 (DN200) orange ISO

d1

219.1

DN1

DN200

l1

32

z1

2

d2

219.1

DN2

DN200

l2

32

z2

2

code

10Z070085E03

size

219.1 (DN200) galvanized ISO

d1

219.1

DN1

DN200

l1

32

z1

2

d2

219.1

DN2

DN200

l2

32

z2

2

code

10Z0700A1001

size

273 (DN250) orange UNC

d1

273.0

DN1

DN250

l1

33

z1

2

d2

273.0

DN2

DN250

l2

33

z2

2

code

10Z0700A1003

size

273 (DN250) galvanized UNC

d1

273.0

DN1

DN250

l1

33

z1

2

d2

273.0

DN2

DN250

l2

33

z2

2

code

10Z0700A3001

size

323.9 (DN300) orange UNC

d1

323.9

DN1

DN300

l1

33

z1

2

d2

323.9

DN2

DN300

l2

33

z2

2

code

10Z0700A3003

size

323.9 (DN300) galvanized UNC

d1

323.9

DN1

DN300

l1

33

z1

2

d2

323.9

DN2

DN300

l2

33

z2

2

technical drawing for product

product info

item

VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM gasket

item number with gtin

Z07E

manufacturer

Shurjoint

weight

11.8 kg

dimensions

65x452x377 mm

characteristics

color

orange, silver

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished, hot dip galvanized

shape

straight

connection type

groove (coupling)

sealing

EPDM

technical

min. medium temperature

-34 °C

max medium temperature

110 °C

general

product group

fittingen (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

Z07E

UNSPS

40171704

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

save to my IPS

certifications | pdf

CRN Pipe Fittings

save to my IPS

certifications | pdf

EPD VSH Shurjoint Grooved Couplings

save to my IPS

certifications | pdf

FM Z07

save to my IPS

certifications | pdf

LPCB

save to my IPS

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

save to my IPS

certifications | pdf

UL Fittings, Rubber Gasketed

save to my IPS

certifications | pdf

ULc Fittings, Rubber Gasketed

save to my IPS

certifications | pdf

VSH Shurjoint CSTBat

save to my IPS

certifications | pdf

VdS Z07

save to my IPS
image for Z07

image | png

Z07

save to my IPS
image for Z07-Combi

image | png

Z07-Combi

save to my IPS
image for Z07-GV

image | png

Z07-GV

save to my IPS
image for Diagram

diagram | png

Diagram

save to my IPS

submittal sheet | pdf

Datasheet

save to my IPS

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

save to my IPS

label

value

label

etim-class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Shape

value

Straight

label

Model

value

2-part

label

Bend angle

value

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

Yes

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

code

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

code

10Z070012E01

carbon footprint (A1-A3) cradle-to-gate

2.91kgCO2e

carbon footprint (A-C) embodied carbon

3.37kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.31kgCO2e

data source

EPD

code

10Z070012E03

-

-

-

-

-

-

-

-

code

10Z070015E01

carbon footprint (A1-A3) cradle-to-gate

3.32kgCO2e

carbon footprint (A-C) embodied carbon

3.84kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.63kgCO2e

data source

EPD

code

10Z070015E03

-

-

-

-

-

-

-

-

code

10Z070020E01

carbon footprint (A1-A3) cradle-to-gate

3.72kgCO2e

carbon footprint (A-C) embodied carbon

4.31kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.95kgCO2e

data source

EPD

code

10Z070020E03

-

-

-

-

-

-

-

-

code

10Z070029E01

carbon footprint (A1-A3) cradle-to-gate

4.61kgCO2e

carbon footprint (A-C) embodied carbon

5.34kgCO2e

carbon footprint (A-D) cradle-to-cradle

3.66kgCO2e

data source

EPD

code

10Z070029E03

-

-

-

-

-

-

-

-

code

10Z070030E01

carbon footprint (A1-A3) cradle-to-gate

5.26kgCO2e

carbon footprint (A-C) embodied carbon

6.09kgCO2e

carbon footprint (A-D) cradle-to-cradle

4.17kgCO2e

data source

EPD

code

10Z070030E03

-

-

-

-

-

-

-

-

code

10Z070045E01

carbon footprint (A1-A3) cradle-to-gate

8.18kgCO2e

carbon footprint (A-C) embodied carbon

9.46kgCO2e

carbon footprint (A-D) cradle-to-cradle

6.49kgCO2e

data source

EPD

code

10Z070045E03

-

-

-

-

-

-

-

-

code

10Z070052E01

carbon footprint (A1-A3) cradle-to-gate

12.3kgCO2e

carbon footprint (A-C) embodied carbon

14.24kgCO2e

carbon footprint (A-D) cradle-to-cradle

9.76kgCO2e

data source

EPD

code

10Z070052E03

-

-

-

-

-

-

-

-

code

10Z070062E01

carbon footprint (A1-A3) cradle-to-gate

13.92kgCO2e

carbon footprint (A-C) embodied carbon

16.12kgCO2e

carbon footprint (A-D) cradle-to-cradle

11.04kgCO2e

data source

EPD

code

10Z070062E03

-

-

-

-

-

-

-

-

code

10Z070085E01

carbon footprint (A1-A3) cradle-to-gate

28.98kgCO2e

carbon footprint (A-C) embodied carbon

33.54kgCO2e

carbon footprint (A-D) cradle-to-cradle

22.99kgCO2e

data source

EPD

code

10Z070085E03

-

-

-

-

-

-

-

-

code

10Z0700A1001

carbon footprint (A1-A3) cradle-to-gate

42.26kgCO2e

carbon footprint (A-C) embodied carbon

48.91kgCO2e

carbon footprint (A-D) cradle-to-cradle

33.52kgCO2e

data source

EPD

code

10Z0700A1003

-

-

-

-

-

-

-

-

code

10Z0700A3001

carbon footprint (A1-A3) cradle-to-gate

48.08kgCO2e

carbon footprint (A-C) embodied carbon

55.66kgCO2e

carbon footprint (A-D) cradle-to-cradle

38.14kgCO2e

data source

EPD

code

10Z0700A3003

-

-

-

-

-

-

-

-

Got any questions?

we are here to help

contact
product selected products selected
add to list save to my IPS

You can compare up to 2 products

You can compare up to 4 products

[saving downloads] requires an account

register

added to my IPS

View
sluiten

choose your region

send by email

This field is hidden when viewing the form
optional
optional
optional

NEW: myIPS including submittal package builder

streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.

go to my IPS now!

requires an account

log in
register

filter downloads

filters

by name or type

search

category

category
  • brochures (32)
  • technical manuals (16)
  • installation manuals (3)
  • EPD (23)

product line

product line
  • VSH XPress (202)
  • VSH SudoPress (102)
  • VSH Shurjoint (75)
  • Pegler valves (69)

product type

product type
  • fittings (328)
  • valves (127)
  • pipes (99)
  • measurement and accessories (10)
show results
