group: XTTTRVLS
heating
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
l1
z1
l2
z2
item

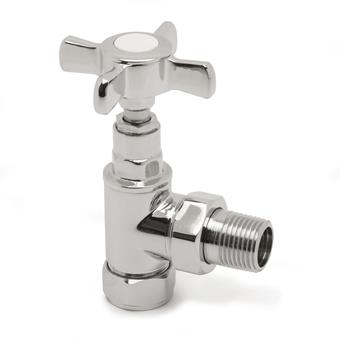

x top modern angle decorative radiator valve wh & ls
item number with gtin
XTTTRVLS (05013866071843)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15xR1/2
weight
0.79 kg
dimensions
60x120x130 mm
color
chrome
materials
brass, plastic (CW617N, ABS)
finishing
polished chrome
shape
Elbow
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 10
sealing
EPDM
max operating pressure liquid
10 bar
min. medium temperature
4 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
appendages (MRV)
ETIM class
EC010136 Radiator valveHS code
84818039
brand
Pegler
series
Terrier Decorative
product type
XTTTRVLS
UNSPS
40141609
label
value
label
etim-class
value
EC010136 Radiator valvelabel
Housing material
value
Brass
label
Shape
value
Right-angled
label
Suitable for single pipe system
value
No
label
Suitable for two pipe system
value
No
label
Length of connection 1
value
33mm
label
Length of connection 1 (imperial)
value
1.3"
label
Working length connection 1
value
12mm
label
Working length connection 1 (imperial)
value
0.47"
label
Length of connection 2
value
51mm
label
Length of connection 2 (imperial)
value
2.01"
label
Working length connection 2
value
31mm
label
Working length connection 2 (imperial)
value
1.22"
label
Height
value
130mm
label
Height (imperial)
value
5.12"
