group: TX480CP
potable water
heating
cooling
non-potable water
industry
commercial building
NSF
UK water regulation 4
code
size
dimensions
weight
packaging
gtin
code
size
15 Cr
dimensions
20x25x67 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
05022050659514
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
H
item

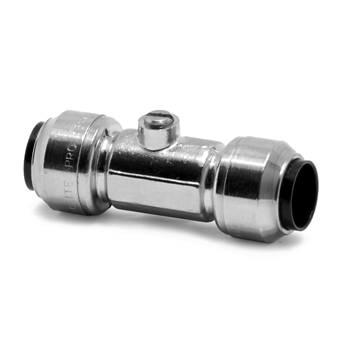

VSH Tectite Pro Chromed Servicing Valve, push-fit x push-fit
item number with gtin
TX480CP (05022050659514)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15 Cr
weight
0.1 kg
dimensions
20x25x67 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
straight
connection type
push
pressure rating (PN)
PN 25
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
product group
afsluiters (ball valves)
ETIM class
EC011343 Ball valveHS code
84818019
brand
VSH
series
Tectite
product type
TX480CP
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Brass
label
Material quality
value
CuZn36Pb2As (CW602N)
label
Surface protection housing
value
None
label
Material ball seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Material ball
value
Brass
label
Surface protection ball
value
None
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Nominal diameter connection 1
value
DN 15
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Connection 1
value
Insert (push-fitting)
label
With coupling connection 1
value
Yes
label
Nominal diameter connection 2
value
DN 15
label
Outer pipe diameter connection 2
value
15mm
label
Outer pipe diameter connection 2 (imperial)
value
0.59"
label
Connection 2
value
Insert (push-fitting)
label
With coupling connection 2
value
Yes
label
Sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Article compression class
value
PN 25
label
Flange compression class
value
PN 25
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Fire-safe
value
No
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Length of connection 1
value
35mm
label
Length of connection 1 (imperial)
value
1.38"
label
Working length connection 1
value
15mm
label
Working length connection 1 (imperial)
value
0.59"
label
Length of connection 2
value
35mm
label
Length of connection 2 (imperial)
value
1.38"
label
Working length connection 2
value
15mm
label
Working length connection 2 (imperial)
value
0.59"
label
Angle of the valve
value
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Type approval according to BBR/EKS
value
No
