group: TX3

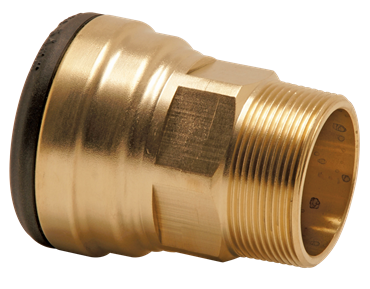

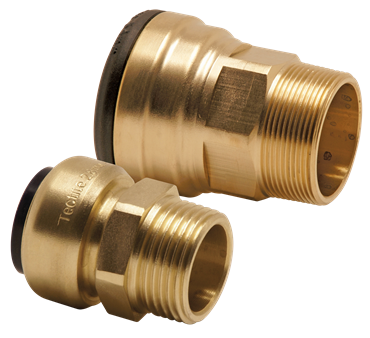

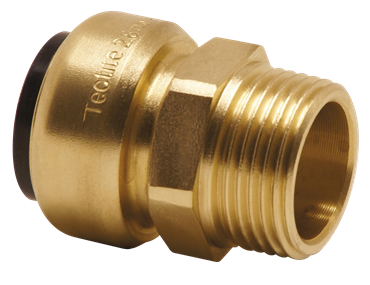

The VSH Tectite Pro TX3 is a straight male coupling with a push fit and a male taper threaded end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
KIWA
UK water regulation 4
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
15xR1/2"
dimensions
40x25x25 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050652683
code
size
22xR1"
dimensions
50x40x40 mm
weight
0.16 kg
packaging
bag (5 pce)
gtin
05022050652966
code
size
22xR3/4"
dimensions
45x33x33 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050652935
code
size
28xR1"
dimensions
53x43x43 mm
weight
0.15 kg
packaging
bag (2 pce)
gtin
05022050652997
code
size
35xR1 1/4"
dimensions
80x60x60 mm
weight
0.38 kg
packaging
bag (1 pce)
gtin
05022050002167
code
size
42xR1 1/2"
dimensions
90x70x70 mm
weight
0.53 kg
packaging
bag (1 pce)
gtin
05022050002174
code
size
54xR2"
dimensions
100x80x80 mm
weight
0.69 kg
packaging
bag (1 pce)
gtin
05022050002181
code
size
d1
DN1
l1
DN2
l2
slw2
item
VSH Tectite Pro straight connector (push x male thread)
item number with gtin
TX3
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.69 kg
dimensions
100x80x80 mm
color
bronze, brass
materials
bronze, brass (EN CC499K, CW602N (DZR))
finishing
none
shape
straight, reducer
connection type
push, R - male thread gas conical (BSPT)
sealing
EPDM
min. medium temperature
-24 °C
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
VSH
series
Tectite Pro
product type
TX3
UNSPS
40172501
scip
8078ea46-ded6-4488-8aee-1429ca03f1ed
label
value
label
etim-class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
Yes
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
