group: TX24

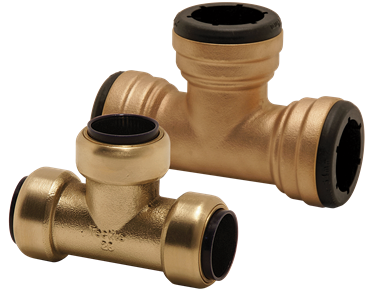

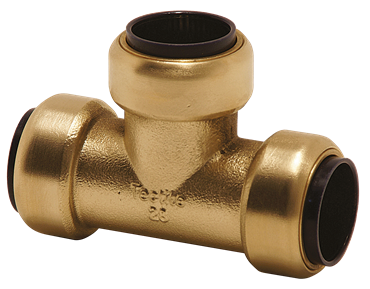

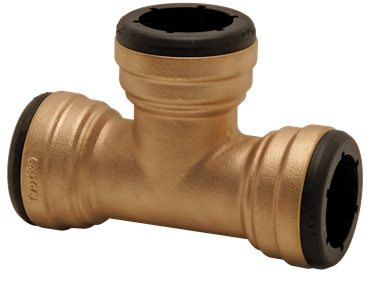

The VSH Tectite Pro TX24 is a T-piece with three push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
ACS
BSI Kitemark
CSN
DVGW Wasser
KIWA
QB (CSTBat)
UK water regulation 4
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
65x20x40 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
05022050656674
item number
size
22
dimensions
80x35x55 mm
weight
0.17 kg
packaging
bag (5 pce)
gtin
05022050656773
item number
size
28
dimensions
95x43x70 mm
weight
0.31 kg
packaging
bag (2 pce)
gtin
05022050656803
item number
size
35
dimensions
150x60x110 mm
weight
0.89 kg
packaging
bag (1 pce)
gtin
05022050008145
item number
size
42
dimensions
170x70x125 mm
weight
1.3 kg
packaging
bag (1 pce)
gtin
05022050008152
item number
size
54
dimensions
195x85x150 mm
weight
1.88 kg
packaging
bag (1 pce)
gtin
05022050008169
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
65666size
15
d1
15.0
DN1
DN15
l1
33
z1
9
d2
15.0
DN2
DN15
l2
33
z2
9
d3
15.0
DN3
DN15
l3
33
z3
9
item number
65676size
22
d1
22.0
DN1
DN20
l1
41
z1
12
d2
22.0
DN2
DN20
l2
41
z2
12
d3
22.0
DN3
DN20
l3
41
z3
12
item number
65678size
28
d1
28.0
DN1
DN25
l1
49
z1
17
d2
28.0
DN2
DN25
l2
49
z2
17
d3
28.0
DN3
DN25
l3
49
z3
17
item number
45680size
35
d1
35.0
DN1
DN32
l1
76
z1
19
d2
35.0
DN2
DN32
l2
76
z2
19
d3
35.0
DN3
DN32
l3
76
z3
19
item number
45682size
42
d1
42.0
DN1
DN40
l1
85
z1
23
d2
42.0
DN2
DN40
l2
85
z2
23
d3
42.0
DN3
DN40
l3
85
z3
23
item number
45684size
54
d1
54.0
DN1
DN50
l1
98
z1
29
d2
54.0
DN2
DN50
l2
98
z2
29
d3
54.0
DN3
DN50
l3
98
z3
29
color
brass, bronze
materials
bronze, brass (CW602N (DZR), EN CC499K)
finishing
none
shape
T-piece (90º)
connection type
push, Push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
Tectite Pro
product type
TX24
UNSPS
40174601
scip
8078ea46-ded6-4488-8aee-1429ca03f1ed
max operating pressure liquid
value depends on the item view items
min. medium temperature
-24 °C
max medium temperature
value depends on the item view items
peak medium temperature
value depends on the item view items
label
value
label
ETIM class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Connection 3
value
Insert (push-fitting)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
High tensile strength
value
Yes
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
