group: TX2

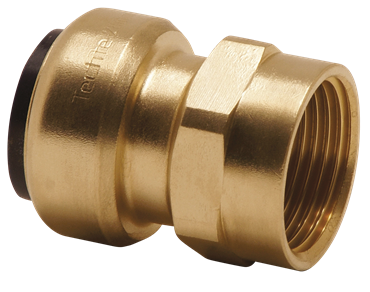

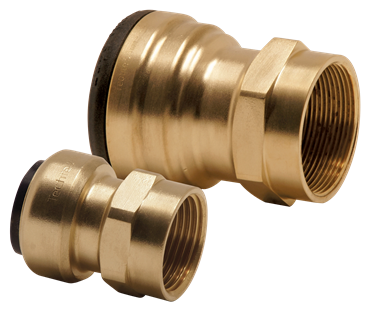

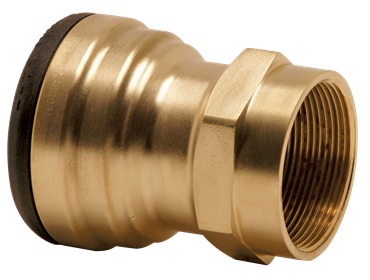

The VSH Tectite Pro TX2 slip is a straight female coupling with a push fit and a female threaded end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
BSI Kitemark
KIWA
UK water regulation 4
item number
size
dimensions
weight
packaging
gtin
item number
size
15xG1/2"
dimensions
40x30x30 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050652072
item number
size
22xG1"
dimensions
50x40x40 mm
weight
0.14 kg
packaging
bag (5 pce)
gtin
05022050652263
item number
size
22xG3/4"
dimensions
45x35x35 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050652232
item number
size
28xG1"
dimensions
50x40x40 mm
weight
0.14 kg
packaging
bag (2 pce)
gtin
05022050652294
item number
size
35xG1 1/4"
dimensions
80x60x60 mm
weight
0.35 kg
packaging
bag (1 pce)
gtin
05022050001498
item number
size
42xG1 1/2"
dimensions
90x70x70 mm
weight
0.46 kg
packaging
bag (1 pce)
gtin
05022050001504
item number
size
54xG2"
dimensions
100x80x80 mm
weight
0.64 kg
packaging
bag (1 pce)
gtin
05022050001511
item number
size
d1
DN1
l1
z1
DN2
l2
z2
slw2
color
brass, bronze
materials
bronze, brass (CW602N (DZR), EN CC499K)
finishing
none
shape
straight, reducer
connection type
push, G - female thread gas cylindrical (BSPP)
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Tectite Pro
product type
TX2
UNSPS
40172501
scip
8078ea46-ded6-4488-8aee-1429ca03f1ed
max operating pressure liquid
value depends on the item view items
min. medium temperature
-24 °C
max medium temperature
value depends on the item view items
peak medium temperature
value depends on the item view items
label
value
label
ETIM class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
Yes
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Working length connection 1
value
1mm
label
Working length connection 1 (imperial)
value
0.04"
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
