group: TX1S

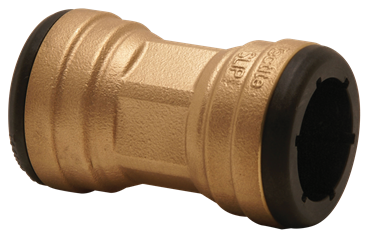

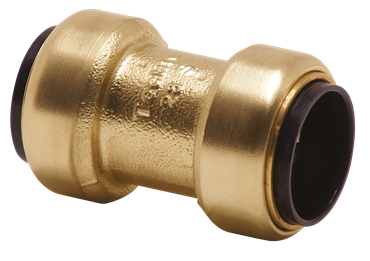

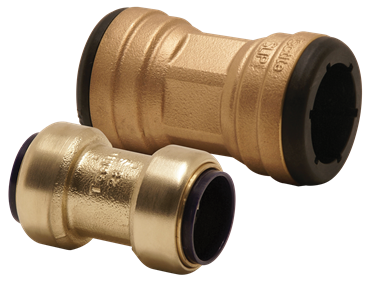

The VSH Tectite Pro TX1 slip is a straight coupling with 2 push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
ACS
BSI Kitemark
CSN
DVGW Wasser
KIWA
QB (CSTBat)
UK water regulation 4
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
50x25x25 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050651426
item number
size
22
dimensions
60x35x35 mm
weight
0.1 kg
packaging
bag (5 pce)
gtin
05022050651457
item number
size
28
dimensions
69x41x41 mm
weight
0.16 kg
packaging
bag (5 pce)
gtin
05022050651488
item number
size
35
dimensions
110x55x55 mm
weight
0.5 kg
packaging
bag (1 pce)
gtin
05022050451507
item number
size
42
dimensions
125x70x70 mm
weight
0.74 kg
packaging
bag (1 pce)
gtin
05022050451514
item number
size
54
dimensions
140x85x85 mm
weight
1.16 kg
packaging
bag (1 pce)
gtin
05022050451521
item number
size
d1
DN1
l1
d2
DN2
l2
color
brass, bronze
materials
bronze, brass (CW602N (DZR), EN CC499K)
finishing
none
shape
straight
connection type
push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Tectite Pro
product type
TX1S
UNSPS
40172501
scip
8078ea46-ded6-4488-8aee-1429ca03f1ed
max operating pressure liquid
min. medium temperature
-24 °C
max medium temperature
peak medium temperature
label
value
label
ETIM class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
item number
carbon footprint (A-C) embodied carbon
data source
46180
46182
46181
