group: TX12S

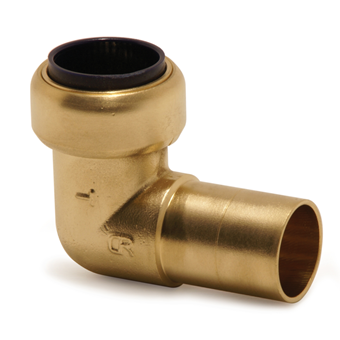

The VSH Tectite Pro TX12S is a 90° elbow with a push fit and tube end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
KIWA
BSI Kitemark KM 15121
UK water regulation 4
code
size
dimensions
weight
packaging
gtin
code
size
15xØ15
dimensions
55x25x40 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
05022050654977
code
size
22xØ22
dimensions
65x35x50 mm
weight
0.13 kg
packaging
bag (5 pce)
gtin
05022050655011
code
size
28xØ28
dimensions
75x40x60 mm
weight
0.19 kg
packaging
bag (5 pce)
gtin
05022050655042
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
angle
item
VSH Tectite Pro Street Elbow
item number with gtin
TX12S
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.19 kg
dimensions
75x40x60 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
Elbow, 90º
connection type
push, tube end
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
VSH
series
Tectite Pro
product type
TX12S
UNSPS
40172801
scip
8078ea46-ded6-4488-8aee-1429ca03f1ed
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Soldered end
label
Main colour fitting
value
Brass
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
