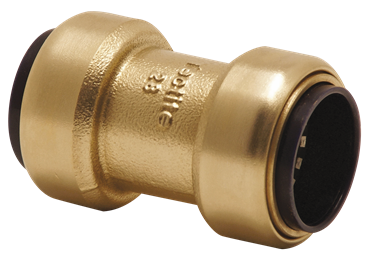

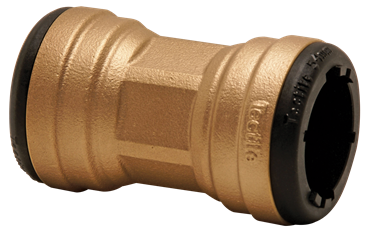

VSH Tectite Pro straight coupling (2 x push)

group: TX1

The VSH Tectite Pro TX1 is a straight coupling with 2 push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.

  • demountable
  • Electrical continuity
  • Enhance temperatures & pressure performance
  • no heat works required
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

ACS

ACS

BSI Kitemark

BSI Kitemark

CSN

CSN

DVGW Wasser

DVGW Wasser

KIWA

KIWA

QB (CSTBat)

QB (CSTBat)

UK water regulation 4

UK water regulation 4

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

65114

size

15

d1

15.0

DN1

DN15

l1

25

z1

1

d2

15.0

DN2

DN15

l2

25

z2

1

item number

65121

size

22

d1

22.0

DN1

DN20

l1

30

z1

1

d2

22.0

DN2

DN20

l2

30

z2

1

item number

65123

size

28

d1

28.0

DN1

DN25

l1

33

z1

1

d2

28.0

DN2

DN25

l2

33

z2

1

item number

45126

size

35

d1

35.0

DN1

DN32

l1

58

z1

1

d2

35.0

DN2

DN32

l2

58

z2

1

item number

45128

size

42

d1

42.0

DN1

DN40

l1

63

z1

1

d2

42.0

DN2

DN40

l2

63

z2

1

item number

45130

size

54

d1

54.0

DN1

DN50

l1

70

z1

1

d2

54.0

DN2

DN50

l2

70

z2

1

technical drawing for product

characteristics

color

brass, bronze

materials

bronze, brass (CW602N (DZR), EN CC499K)

finishing

none

shape

straight

connection type

push

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Tectite Pro

product type

TX1

UNSPS

40172601

scip

8078ea46-ded6-4488-8aee-1429ca03f1ed

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-24 °C

max medium temperature

value depends on the item view items

peak medium temperature

value depends on the item view items

installation- & maintenance document | pdf

VSH Tectite installation instructions

installation- & maintenance document | pdf

VSH Tectite installation instructions

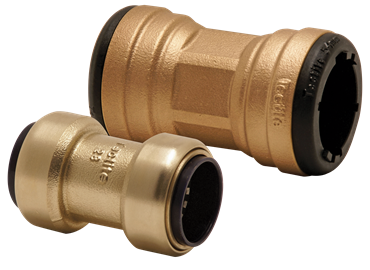

image for TX1_Combi

image | png

TX1_Combi

image for Diagram

diagram | jpg

Diagram

certifications | pdf

CSN Tectite PRO/Classic/Sprint/316

link to sheet | pdf

MSDS_VSH_Tectite Pro

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

image for TX1

image | png

TX1

image for TX1_35-54

image | png

TX1_35-54

certifications | pdf

Tectite Pro DZR NSG REG4 1+

certifications | pdf

Tectite Push KIWA

certifications | pdf

VSH Tectite ACS

certifications | pdf

VSH Tectite Classic & Pro WRAS

certifications | pdf

VSH Tectite Classic and Pro DVGW

certifications | pdf

VSH_Tectite_Classic_Pro_OVGW

certifications | pdf

ATec_14.1_16-2241_V1

image for Tectite Pro 35-54 TX1

diagram | jpg

Tectite Pro 35-54 TX1

label

value

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Insert (push-fitting)

label

Connection 2

value

Insert (push-fitting)

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Working length connection 1

value

1mm

label

Working length connection 1 (imperial)

value

0.04"

label

Working length connection 2

value

1mm

label

Working length connection 2 (imperial)

value

0.04"

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

Certified according to NF 545

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

65114

carbon footprint (A-C) embodied carbon

0.27kgCO2e

data source

TM65

item number

65121

carbon footprint (A-C) embodied carbon

0.43kgCO2e

data source

TM65

item number

65123

carbon footprint (A-C) embodied carbon

0.75kgCO2e

data source

TM65

item number

45126

carbon footprint (A-C) embodied carbon

3.12kgCO2e

data source

TM65

item number

45128

carbon footprint (A-C) embodied carbon

4.97kgCO2e

data source

TM65

item number

45130

carbon footprint (A-C) embodied carbon

7.03kgCO2e

data source

TM65
