group: TT6

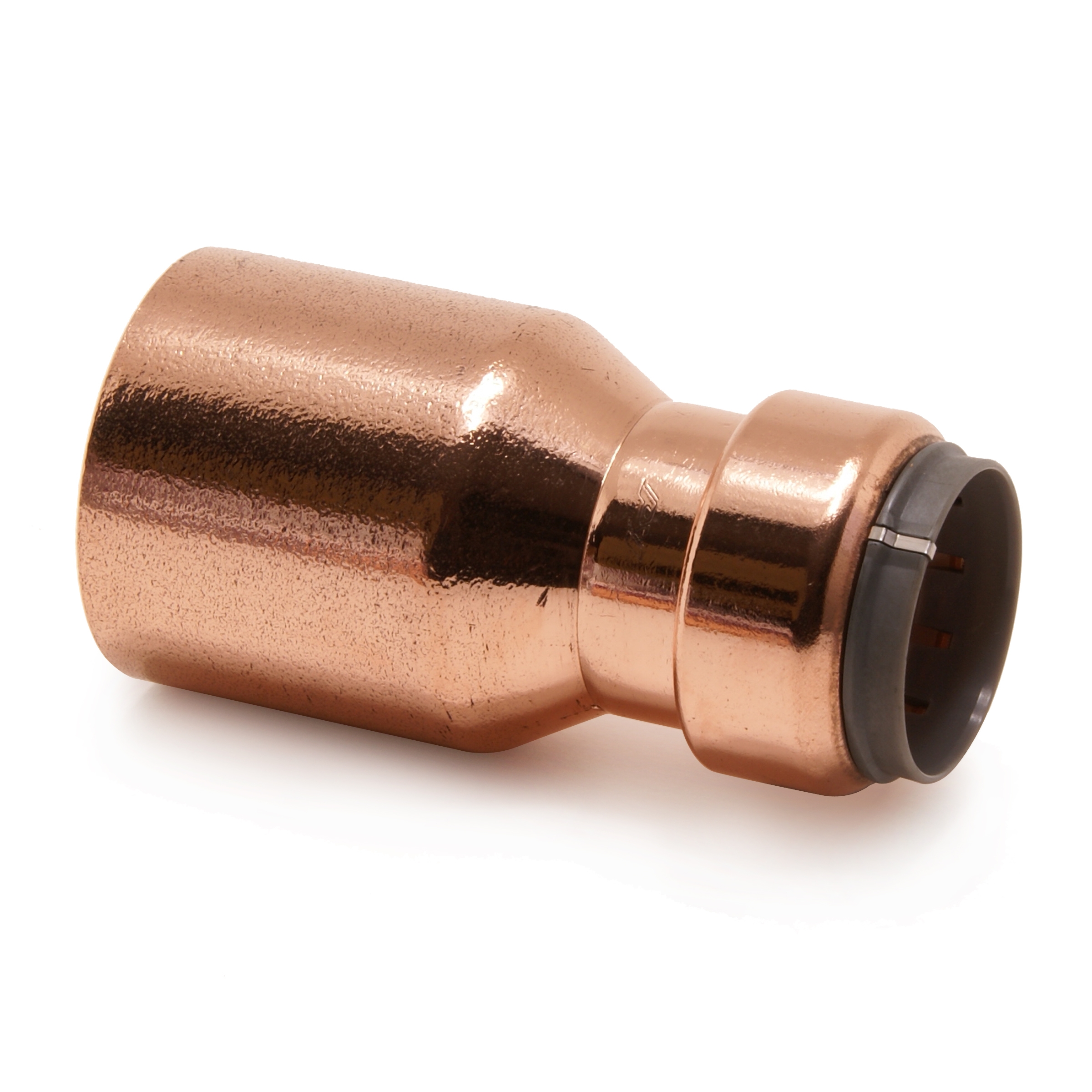

The VSH Tectite sprint TT6 is a reducer with a push and female end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
residential
DVGW Wasser
WRAS
ACS
ETA
RISE
NSF
CSN
BSI Kitemark KM 15121
KIWA
code
size
dimensions
weight
packaging
gtin
code
size
Ø15x10
dimensions
42x15x17 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050109705
code
size
Ø15x12
dimensions
35x18x18 mm
weight
0.02 kg
packaging
bag (10 pce)
gtin
05022050177995
code
size
Ø22x15
dimensions
47x22x22 mm
weight
0.03 kg
packaging
bag (5 pce)
gtin
05022050109941
code
size
Ø28x15
dimensions
52x21x26 mm
weight
0.04 kg
packaging
bag (5 pce)
gtin
05022050110244
code
size
Ø28x22
dimensions
51x27x31 mm
weight
0.05 kg
packaging
bag (5 pce)
gtin
05022050110480
code
size
Ø35x15
dimensions
75x35x35 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
05022050373656
code
size
Ø35x22
dimensions
71x35x35 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050373687
code
size
Ø35x28
dimensions
73x35x35 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050373786
code
size
Ø42x22
dimensions
81x42x42 mm
weight
0.11 kg
packaging
bag (1 pce)
gtin
05022050367068
code
size
Ø42x28
dimensions
78x42x42 mm
weight
0.12 kg
packaging
bag (1 pce)
gtin
05022050367082
code
size
Ø42x35
dimensions
86x42x42 mm
weight
0.15 kg
packaging
bag (1 pce)
gtin
05022050367105
code
size
Ø54x28
dimensions
91x54x54 mm
weight
0.16 kg
packaging
bag (1 pce)
gtin
05022050367143
code
size
Ø54x35
dimensions
94x54x54 mm
weight
0.17 kg
packaging
bag (1 pce)
gtin
05022050367167
code
size
Ø54x42
dimensions
96x54x54 mm
weight
0.2 kg
packaging
bag (1 pce)
gtin
05022050367181
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
item
VSH Tectite Sprint straight coupling reduced (push x female)
item number with gtin
TT6
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.2 kg
dimensions
96x54x54 mm
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
straight, reducer
connection type
push, tube end
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsbrand
VSH
series
Tectite Sprint
product type
TT6
UNSPS
40173613
label
value
label
etim-class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
Yes
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Soldered end
label
Main colour fitting
value
Copper
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
code
