group: TT3CP
potable water
heating
cooling
commercial building
residential
ACS
DVGW Wasser
RISE
WRAS
NSF
CSN
BSI Kitemark KM 15121
ETA
code
size
dimensions
weight
packaging
gtin
code
size
12xRp3/8" Cr"
dimensions
30x25x25 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050317018
code
size
15xRp1/2" Cr"
dimensions
36x25x25 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050289445
item

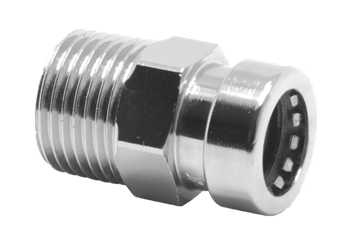

VSH Tectite Sprint straight male connector (push x male thread)
item number with gtin
TT3CP
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.04 kg
dimensions
36x25x25 mm
color
chrome
materials
brass (CW602N (DZR))
finishing
chromed
shape
straight
connection type
push, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsbrand
VSH
series
Tectite Sprint
product type
TT3CP
UNSPS
40172501
scip
3c90e95f-7cef-49f0-9570-917e7b1fc7d2
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Chromium-plated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Chromium-plated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Chrome
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Length of connection 1
value
16mm
label
Length of connection 1 (imperial)
value
0.63"
label
Length of connection 2
value
17mm
label
Length of connection 2 (imperial)
value
0.67"
label
Working length connection 2
value
label
Working length connection 2 (imperial)
value
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
