group: TT3

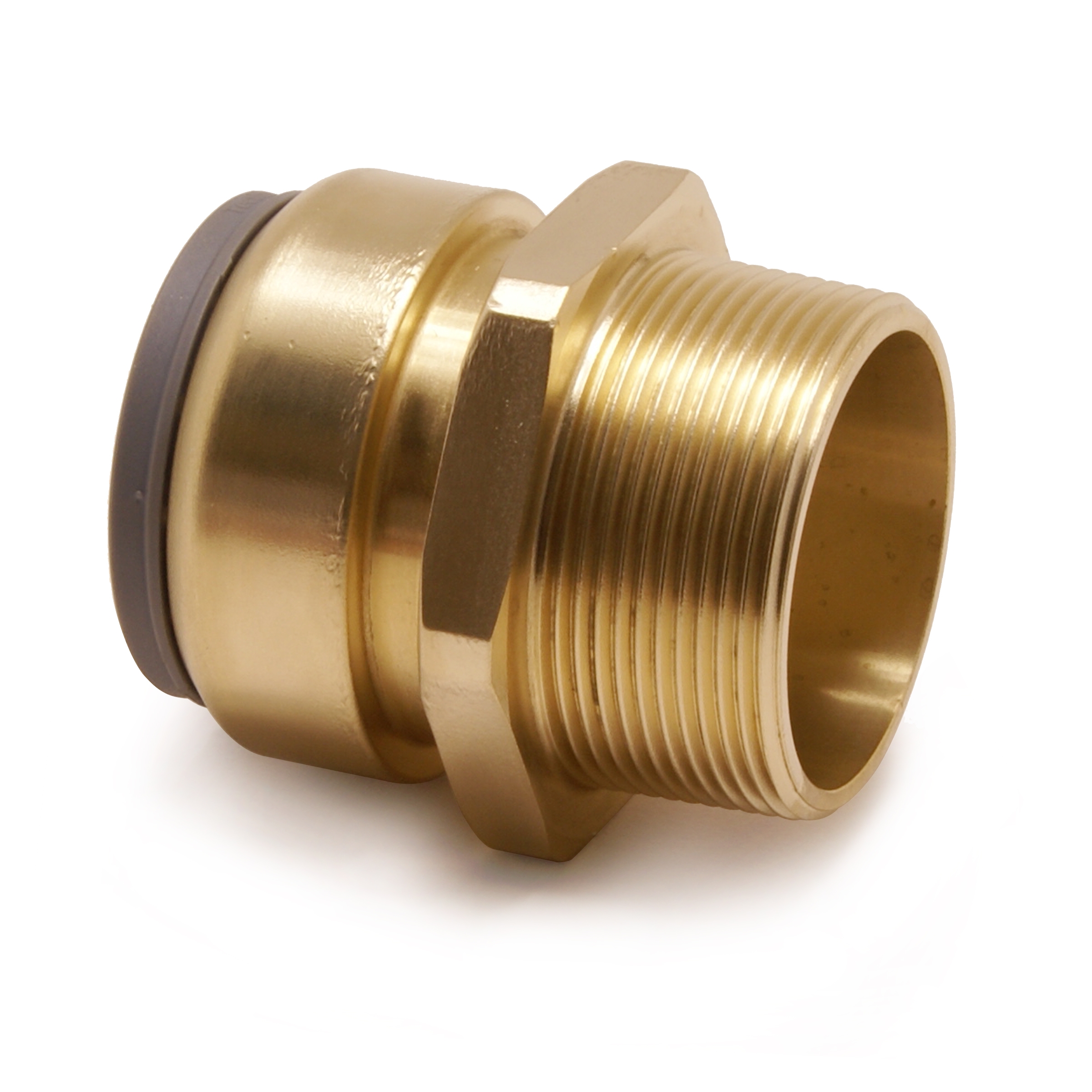

The VSH Tectite sprint TT3 is a straight male connector with a push fit and male taper threaded end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
residential
commercial building
ACS
BSI Kitemark
CSN
DVGW Wasser
ETA
KIWA
NSF
RISE
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
10xR3/8"
dimensions
30x20x20 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050176097
item number
size
12xR1/2"
dimensions
35x25x25 mm
weight
0.05 kg
packaging
bag (10 pce)
gtin
05022050176714
item number
size
12xR3/8"
dimensions
30x25x25 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050176516
item number
size
14xR1/2"
dimensions
35x25x25 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050177155
item number
size
14xR3/8"
dimensions
30x23x23 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050176950
item number
size
15xR1/2"
dimensions
37x20x22 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050108500
item number
size
16xR1/2"
dimensions
35x25x25 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050177377
item number
size
18xR3/4"
dimensions
40x25x25 mm
weight
0.07 kg
packaging
bag (5 pce)
gtin
05022050177551
item number
size
22xR3/4"
dimensions
40x27x30 mm
weight
0.05 kg
packaging
bag (5 pce)
gtin
05022050108746
item number
size
28xR1"
dimensions
40x35x35 mm
weight
0.08 kg
packaging
bag (2 pce)
gtin
05022050108982
item number
size
35xR1 1/4"
dimensions
56x41x41 mm
weight
0.22 kg
packaging
bag (5 pce)
gtin
05022050373588
item number
size
42xR1 1/2"
dimensions
72x48x48 mm
weight
0.26 kg
packaging
bag (1 pce)
gtin
05022050366962
item number
size
54xR2"
dimensions
79x55x55 mm
weight
0.4 kg
packaging
bag (1 pce)
gtin
05022050366986
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw2
item number
75679size
10xR3/8"
d1
10.0
DN1
DN10
l1
15
z1
3
d2
17.0
DN2
3/8" (DN10)
l2
17
z2
0
slw2
22
item number
75682size
12xR1/2"
d1
12.0
DN1
DN10
l1
16
z1
2
d2
21.3
DN2
1/2" (DN15)
l2
19
z2
0
slw2
25
item number
75681size
12xR3/8"
d1
12.0
DN1
DN10
l1
16
z1
3
d2
17.0
DN2
3/8" (DN10)
l2
17
z2
0
slw2
22
item number
75684size
14xR1/2"
d1
14.0
DN1
DN15
l1
16
z1
2
d2
21.3
DN2
1/2" (DN15)
l2
17
z2
0
slw2
22
item number
75683size
14xR3/8"
d1
14.0
DN1
DN15
l1
16
z1
3
d2
17.0
DN2
3/8" (DN10)
l2
17
z2
0
slw2
22
item number
75515size
15xR1/2"
d1
15.0
DN1
DN15
l1
16
z1
2
d2
21.3
DN2
1/2" (DN15)
l2
20
z2
0
slw2
21
item number
75685size
16xR1/2"
d1
16.0
DN1
DN15
l1
15
z1
2
d2
21.3
DN2
1/2" (DN15)
l2
19
z2
0
slw2
22
item number
75687size
18xR3/4"
d1
18.0
DN1
DN15
l1
17
z1
1
d2
26.9
DN2
3/4" (DN20)
l2
23
z2
0
slw2
27
item number
75516size
22xR3/4"
d1
22.0
DN1
DN20
l1
16
z1
1
d2
26.9
DN2
3/4" (DN20)
l2
23
z2
0
slw2
26
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
straight
connection type
push, R - male thread gas conical (BSPT)
sealing
EPDM
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Tectite Sprint
product type
TT3
UNSPS
40172501
scip
3c90e95f-7cef-49f0-9570-917e7b1fc7d2
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Working length connection 2
value
0mm
label
Working length connection 2 (imperial)
value
0"
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
