group: TT25

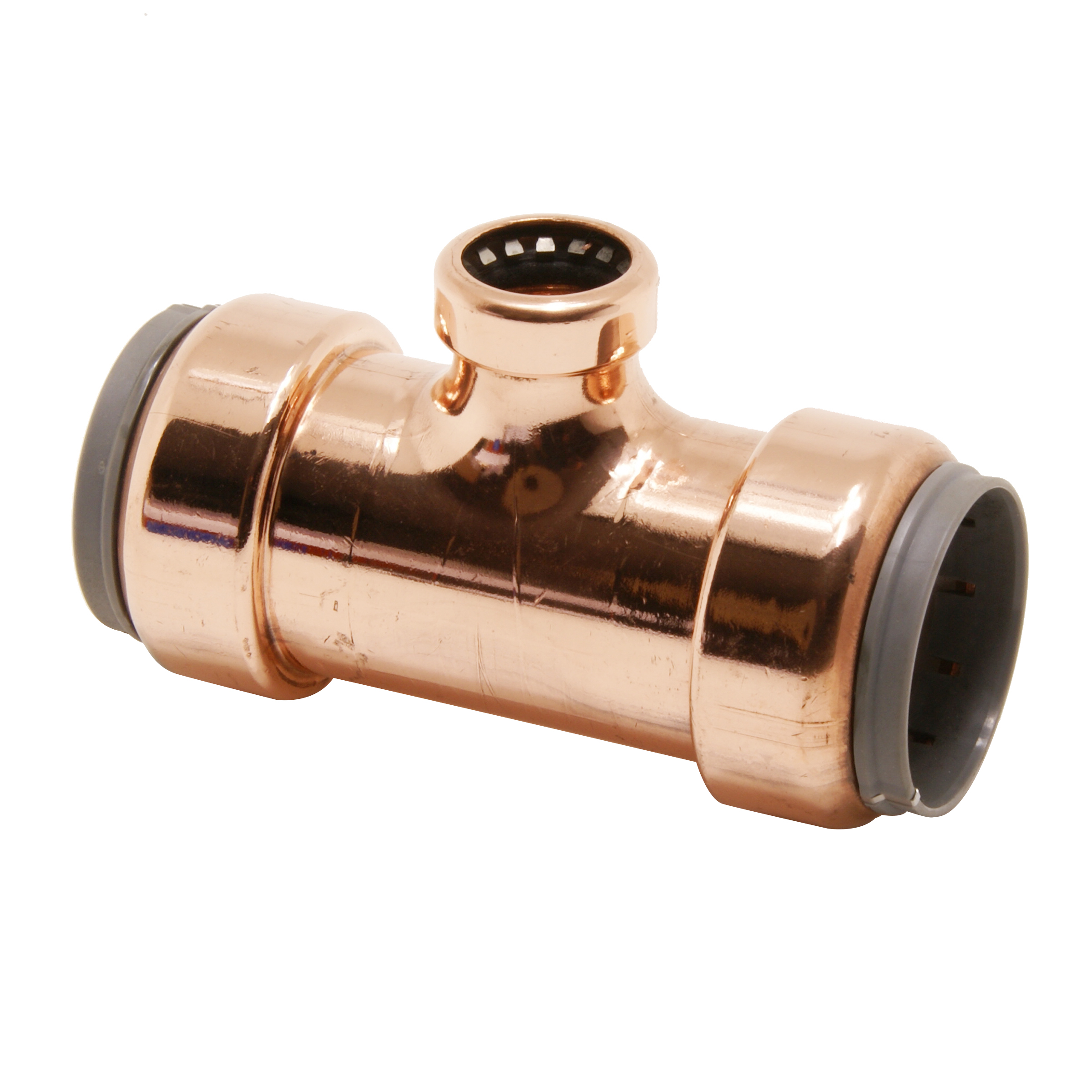

The VSH Tectite sprint TT25 is a reduced branch t-piece with three push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
residential
commercial building
ACS
BSI Kitemark
CSN
DVGW Wasser
ETA
KIWA
NSF
RISE
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
54x54x22
dimensions
170x93x93 mm
weight
0.51 kg
packaging
bag (1 pce)
gtin
05022050367716
item number
size
28x28x15
dimensions
59x37x50 mm
weight
0.11 kg
packaging
bag (2 pce)
gtin
05022050115201
item number
size
22x22x18
dimensions
60x30x45 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
05022050186140
item number
size
42x42x22
dimensions
138x81x81 mm
weight
0.35 kg
packaging
bag (1 pce)
gtin
05022050367655
item number
size
22x22x15
dimensions
55x30x47 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
05022050114969
item number
size
28x28x22
dimensions
68x37x57 mm
weight
0.12 kg
packaging
bag (2 pce)
gtin
05022050115447
item number
size
15x15x12
dimensions
50x18x35 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050184603
item number
size
18x18x15
dimensions
50x23x40 mm
weight
0.05 kg
packaging
bag (5 pce)
gtin
05022050185532
item number
size
35x35x22
dimensions
128x73x73 mm
weight
0.2 kg
packaging
bag (5 pce)
gtin
05022050374349
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
75944size
54x54x22
d1
54.0
DN1
DN50
l1
64
z1
19
d2
22.0
DN2
DN20
l2
51
z2
55
d3
54.0
DN3
DN50
l3
64
z3
19
item number
75568size
28x28x15
d1
28.0
DN1
DN25
l1
28
z1
10
d2
15.0
DN2
DN12
l2
35
z2
16
d3
28.0
DN3
DN25
l3
28
z3
10
item number
75722size
22x22x18
d1
22.0
DN1
DN20
l1
30
z1
10
d2
18.0
DN2
DN15
l2
32
z2
12
d3
22.0
DN3
DN20
l3
30
z3
10
item number
75940size
42x42x22
d1
42.0
DN1
DN40
l1
61
z1
19
d2
22.0
DN2
DN20
l2
44
z2
26
d3
42.0
DN3
DN40
l3
61
z3
19
item number
75567size
22x22x15
d1
22.0
DN1
DN20
l1
28
z1
9
d2
15.0
DN2
DN12
l2
31
z2
14
d3
22.0
DN3
DN20
l3
28
z3
9
item number
75569size
28x28x22
d1
28.0
DN1
DN25
l1
46
z1
14
d2
22.0
DN2
DN20
l2
44
z2
15
d3
28.0
DN3
DN25
l3
46
z3
14
item number
75714size
15x15x12
d1
15.0
DN1
DN12
l1
25
z1
9
d2
12.0
DN2
DN10
l2
28
z2
11
d3
15.0
DN3
DN12
l3
25
z3
9
item number
75719size
18x18x15
d1
18.0
DN1
DN15
l1
27
z1
11
d2
15.0
DN2
DN12
l2
28
z2
12
d3
18.0
DN3
DN15
l3
27
z3
11
item number
75937size
35x35x22
d1
35.0
DN1
DN32
l1
56
z1
16
d2
22.0
DN2
DN20
l2
40
z2
22
d3
35.0
DN3
DN32
l3
56
z3
16
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
T-piece, reducer (90º)
connection type
push, Push
sealing
EPDM
product group
fittings
ETIM class
EC003025 Fitting with 3 connections
brand
VSH
series
Tectite Sprint
product type
TT25
UNSPS
40174612
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
label
value
label
ETIM class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Copper
label
Material quality connection 3
value
Cu-DHP (CW024A)
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
Yes
label
Multi-part
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Connection 3
value
Insert (push-fitting)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Copper
label
High tensile strength
value
Yes
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
item number
carbon footprint (A-C) embodied carbon
data source
