group: TT24CP

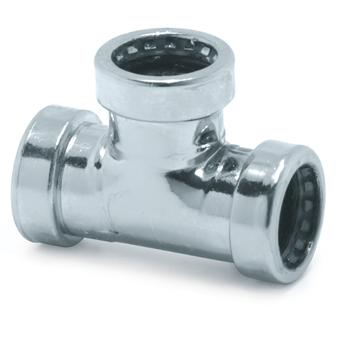

The VSH Tectite sprint TT24CP is a t-piece with three push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
residential
ACS
DVGW Wasser
ETA
RISE
WRAS
NSF
CSN
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
15 Cr
dimensions
48x18x35 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
05022050318343
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
code
size
15 Cr
d1
15.0
DN1
DN15
l1
26
z1
9
d2
15.0
DN2
DN15
l2
26
z2
9
d3
15.0
DN3
DN15
l3
26
z3
9
item
VSH Tectite Sprint T-piece Cr (3 x push)
item number with gtin
TT24CP (05022050318343)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15 Cr
weight
0.07 kg
dimensions
48x18x35 mm
color
chrome
materials
copper (CW024A (UNS C12200))
finishing
chromed
shape
T-piece, 90º
connection type
push
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
product group
fittingen
ETIM class
EC003025 Fitting with 3 connectionsHS code
74121000
brand
VSH
series
Tectite Sprint
product type
TT24CP
UNSPS
40174612
label
value
label
etim-class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Chromium-plated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Chromium-plated
label
Material connection 3
value
Copper
label
Material quality connection 3
value
Cu-DHP (CW024A)
label
Surface protection connection 3
value
Chromium-plated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 15
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Wall thickness, connection 1
value
0.7mm
label
Wall thickness, connection 1 (imperial)
value
0.03"
label
Connection 1
value
Insert (push-fitting)
label
Nominal diameter connection 2
value
DN 15
label
Outer pipe diameter connection 2
value
15mm
label
Outer pipe diameter connection 2 (imperial)
value
0.59"
label
Wall thickness, connection 2
value
0.7mm
label
Wall thickness, connection 2 (imperial)
value
0.03"
label
Connection 2
value
Insert (push-fitting)
label
Nominal diameter connection 3
value
DN 15
label
Outer pipe diameter connection 3
value
15mm
label
Outer pipe diameter connection 3 (imperial)
value
0.59"
label
Wall thickness, connection 3
value
0.7mm
label
Wall thickness, connection 3 (imperial)
value
0.03"
label
Connection 3
value
Insert (push-fitting)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Chrome
label
Length of connection 1
value
26mm
label
Length of connection 1 (imperial)
value
1.02"
label
Working length connection 1
value
9mm
label
Working length connection 1 (imperial)
value
0.35"
label
High tensile strength
value
Yes
label
Length of connection 2
value
26mm
label
Length of connection 2 (imperial)
value
1.02"
label
Working length connection 2
value
9mm
label
Working length connection 2 (imperial)
value
0.35"
label
Length of connection 3
value
26mm
label
Length of connection 3 (imperial)
value
1.02"
label
Working length connection 3
value
9mm
label
Working length connection 3 (imperial)
value
0.35"
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
code
carbon footprint (A-C) embodied carbon
data source
