group: TT21S

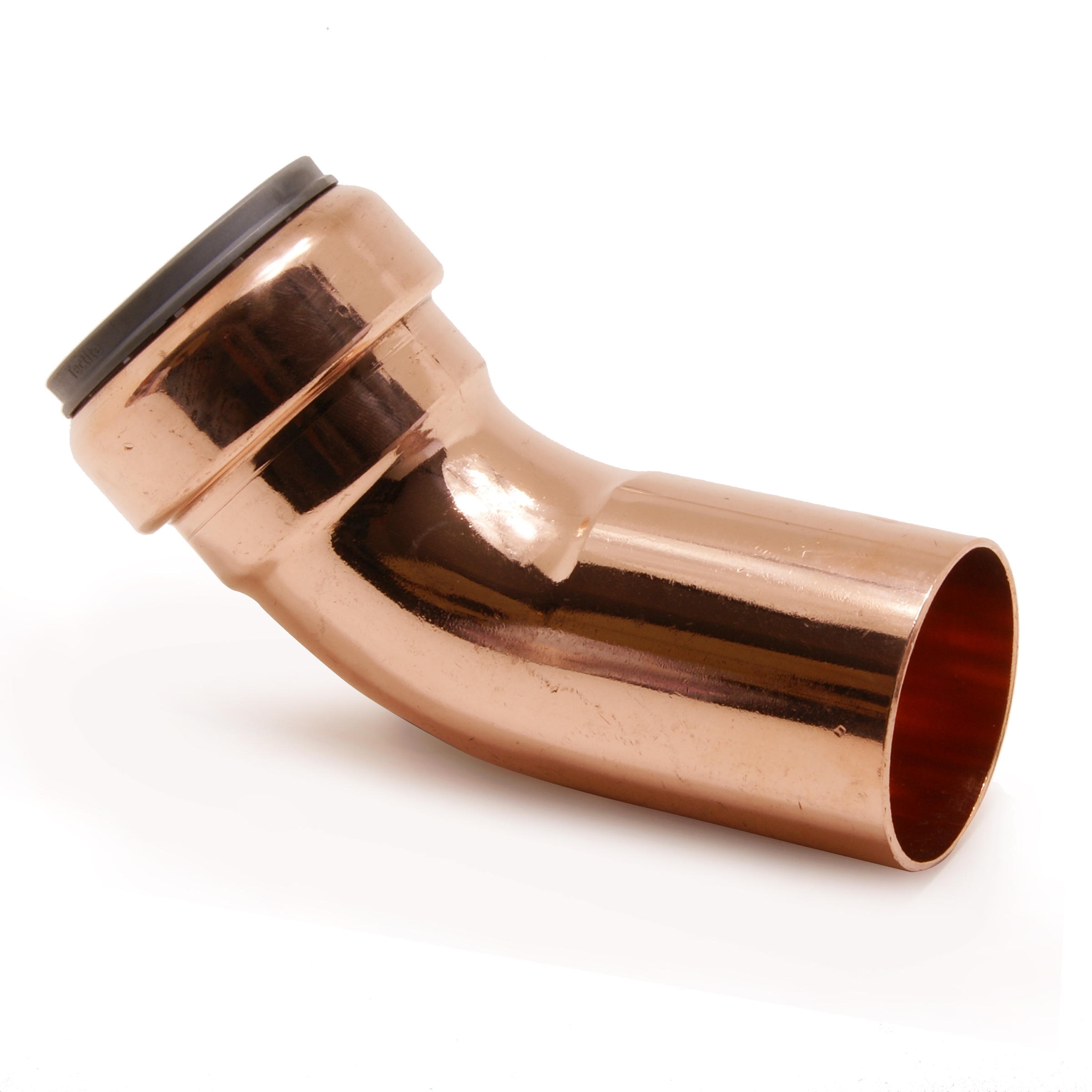

The VSH Tectite sprint TT21S is a 45° obtuse street elbow with a push fit and tube end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
residential
commercial building
ACS
BSI Kitemark
CSN
DVGW Wasser
ETA
KIWA
NSF
RISE
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
12xØ12
dimensions
58x18x18 mm
weight
0.02 kg
packaging
bag (10 pce)
gtin
05022050182319
item number
size
15xØ15
dimensions
60x20x20 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050190840
item number
size
22xØ22
dimensions
80x20x35 mm
weight
0.06 kg
packaging
bag (5 pce)
gtin
05022050191205
item number
size
28xØ28
dimensions
75x35x35 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050191540
item number
size
35xØ35
dimensions
114x64x64 mm
weight
0.17 kg
packaging
bag (5 pce)
gtin
05022050374165
item number
size
42xØ42
dimensions
124x72x72 mm
weight
0.22 kg
packaging
bag (1 pce)
gtin
05022050367471
item number
size
54xØ54
dimensions
140x86x86 mm
weight
0.34 kg
packaging
bag (1 pce)
gtin
05022050367495
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
Bend (45º)
connection type
push, tube end
sealing
EPDM
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
brand
VSH
series
Tectite Sprint
product type
TT21S
UNSPS
40172812
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
label
value
label
ETIM class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
45°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Soldered end
label
Main colour fitting
value
Copper
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
