group: TS62
The VSH Tectite 316 TS62 is a tap connector with a push fit and nut end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
industry
commercial building
KIWA
DVGW Wasser
WRAS
CSN
UK water regulation 4
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
15xG1/2"
dimensions
48x26x26 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050259066
code
size
22xG3/4"
dimensions
59x34x34 mm
weight
0.1 kg
packaging
bag (5 pce)
gtin
05022050259042
item

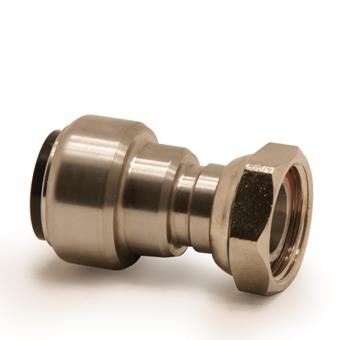

VSH Tectite 316 straight tap connector (push x female thread)
item number with gtin
TS62
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.1 kg
dimensions
59x34x34 mm
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
straight
connection type
push, G - female thread gas cylindrical (BSPP)
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
product group
fittingen (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
73072980
brand
VSH
series
Tectite 316
product type
TS62
UNSPS
40174907
label
value
label
etim-class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
2-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
Main colour fitting
value
Grey
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Length of connection 2
value
13mm
label
Length of connection 2 (imperial)
value
0.51"
label
Working length connection 2
value
2mm
label
Working length connection 2 (imperial)
value
0.08"
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
