group: TS61

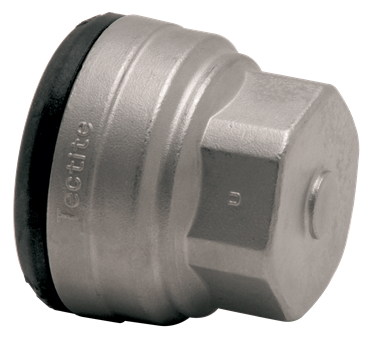

The VSH Tectite 316 TS61 is a stop end with a push fit end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
industry
BSI Kitemark
CSN
DVGW Wasser
KIWA
UK water regulation 4
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
26x26x26 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050258670
item number
size
18
dimensions
26x29x29 mm
weight
0.04 kg
packaging
bag (5 pce)
gtin
05022050258717
item number
size
22
dimensions
30x34x34 mm
weight
0.06 kg
packaging
bag (5 pce)
gtin
05022050258755
item number
size
28
dimensions
34x42x42 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050258786
item number
size
35
dimensions
63x60x60 mm
weight
0.23 kg
packaging
bag (1 pce)
gtin
05022050258809
item number
size
42
dimensions
71x69x71 mm
weight
0.36 kg
packaging
bag (1 pce)
gtin
05022050258823
item number
size
54
dimensions
83x75x83 mm
weight
0.49 kg
packaging
bag (1 pce)
gtin
05022050258847
item number
size
d1
DN1
l1
z1
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
End coupling
connection type
push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003023 Fitting with 1 connection
HS code
73072980
brand
VSH
series
Tectite 316
product type
TS61
UNSPS
40172407
max operating pressure liquid
value depends on the item view items
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
label
value
label
ETIM class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Grey
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
