group: TS6
The VSH Tectite 316 TS6 is a reducer with a push fit & tube end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
industry
commercial building
KIWA
DVGW Wasser
WRAS
CSN
UK water regulation 4
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
Ø18x15
dimensions
45x26x26 mm
weight
0.04 kg
packaging
bag (5 pce)
gtin
05022050254252
code
size
Ø22x15
dimensions
53x26x26 mm
weight
0.05 kg
packaging
bag (5 pce)
gtin
05022050254283
code
size
Ø22x18
dimensions
53x29x29 mm
weight
0.06 kg
packaging
bag (5 pce)
gtin
05022050254313
code
size
Ø28x15
dimensions
55x26x26 mm
weight
0.07 kg
packaging
bag (5 pce)
gtin
05022050254368
code
size
Ø28x18
dimensions
56x29x29 mm
weight
0.07 kg
packaging
bag (5 pce)
gtin
05022050254399
code
size
Ø28x22
dimensions
56x34x34 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
05022050254429
code
size
Ø35x22
dimensions
83x34x34 mm
weight
0.16 kg
packaging
bag (1 pce)
gtin
05022050254528
code
size
Ø35x28
dimensions
88x42x42 mm
weight
0.17 kg
packaging
bag (1 pce)
gtin
05022050254542
code
size
Ø42x22
dimensions
88x34x34 mm
weight
0.2 kg
packaging
bag (1 pce)
gtin
05022050254580
code
size
Ø42x28
dimensions
92x42x42 mm
weight
0.22 kg
packaging
bag (1 pce)
gtin
05022050254603
code
size
Ø42x35
dimensions
116x62x62 mm
weight
0.36 kg
packaging
bag (1 pce)
gtin
05022050254627
code
size
Ø54x35
dimensions
124x60x60 mm
weight
0.44 kg
packaging
bag (1 pce)
gtin
05022050254702
code
size
Ø54x42
dimensions
129x71x71 mm
weight
0.51 kg
packaging
bag (1 pce)
gtin
05022050254726
code
size
d1
DN1
l1
z1
d2
DN2
l2
item

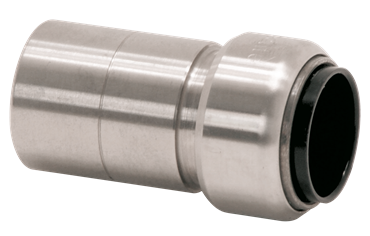

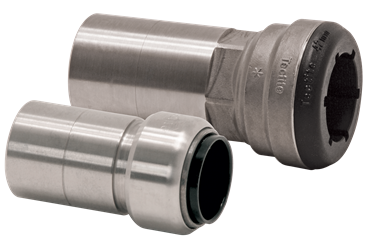

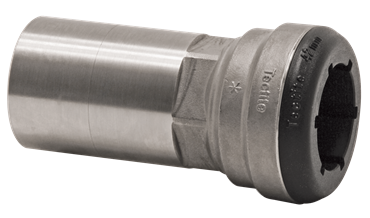

VSH Tectite 316 straight coupling reduced (push x female)
item number with gtin
TS6
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.51 kg
dimensions
129x71x71 mm
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
straight, reducer
connection type
push, tube end
pressure rating (PN)
PN 20
sealing
EPDM
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
product group
fittingen (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
73072980
brand
VSH
series
Tectite 316
product type
TS6
UNSPS
40173607
label
value
label
etim-class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
Yes
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Soldered end
label
Main colour fitting
value
Grey
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
code
