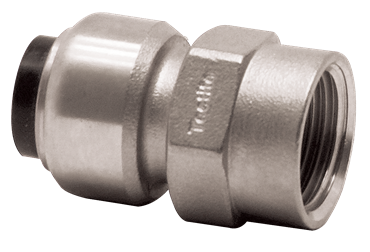

VSH Tectite 316 straight connector (push x female thread)

group: TS2

The VSH Tectite 316 TS2 is a straight female connector with a push fit & a parallel female threaded end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.

  • demountable
  • no heat work required
  • Electrical continuity
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

BSI Kitemark

BSI Kitemark

CSN

CSN

DVGW Wasser

DVGW Wasser

KIWA

KIWA

UK water regulation 4

UK water regulation 4

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

slw2

item number

25206

size

15xG1/2"

d1

15.0

DN1

DN12

l1

25

z1

1

d2

21.3

DN2

1/2" (DN15)

l2

17

slw2

25

item number

25210

size

18xG1/2"

d1

18.0

DN1

DN15

l1

25

z1

1

d2

21.3

DN2

1/2" (DN15)

l2

17

slw2

28

item number

25212

size

18xG3/4"

d1

18.0

DN1

DN15

l1

27

z1

3

d2

26.9

DN2

3/4" (DN20)

l2

17

slw2

32

item number

25220

size

22xG1/2"

d1

22.0

DN1

DN20

l1

30

z1

3

d2

21.3

DN2

1/2" (DN15)

l2

17

slw2

25

item number

25222

size

22xG3/4"

d1

22.0

DN1

DN20

l1

30

z1

3

d2

26.9

DN2

3/4" (DN20)

l2

17

slw2

32

item number

25223

size

22xG1"

d1

22.0

DN1

DN20

l1

28

z1

1

d2

33.7

DN2

1" (DN25)

l2

23

slw2

28

item number

25224

size

28xG3/4"

d1

28.0

DN1

DN25

l1

32

z1

1

d2

26.9

DN2

3/4" (DN20)

l2

17

slw2

32

item number

25225

size

28xG1"

d1

28.0

DN1

DN25

l1

32

z1

1

d2

33.7

DN2

1" (DN25)

l2

23

slw2

38

item number

25230

size

35xG1 1/4"

d1

35.0

DN1

DN32

l1

59

z1

2

d2

42.2

DN2

1 1/4" (DN32)

l2

25

slw2

48

item number

25232

size

42xG1 1/2"

d1

42.0

DN1

DN40

l1

64

z1

2

d2

48.3

DN2

1 1/2" (DN40)

l2

25

slw2

54

item number

25234

size

54xG2"

d1

54.0

DN1

DN50

l1

70

z1

1

d2

60.3

DN2

2" (DN50)

l2

30

slw2

65

technical drawing for product

characteristics

color

silver

materials

stainless steel (Stainless steel 316L (1.4404))

finishing

none

shape

straight

connection type

push, G - female thread gas cylindrical (BSPP)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73072980

brand

VSH

series

Tectite 316

product type

TS2

UNSPS

40172507

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-24 °C

max medium temperature

114 °C

peak medium temperature

114 °C

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

VSH Tectite installation instructions

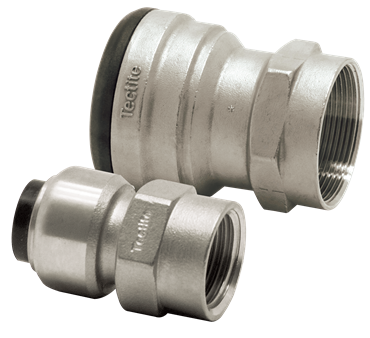

image for TS2_Combi

image | png

TS2_Combi

certifications | pdf

240702052 WRAS Certificate Tectite 316

certifications | pdf

CSN Tectite PRO/Classic/Sprint/316

certifications | pdf

DVGW VSH Tectite 316

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

image for TS2

image | png

TS2

certifications | pdf

Tectite Push KIWA

certifications | pdf

VSH Tectite 316 NSF

certifications | pdf

VSH Tectite 316 WRAS

image for Diagram

diagram | jpg

Diagram

image for TS2_35-54

image | png

TS2_35-54

label

value

label

Material connection 1

value

Stainless steel

label

Material quality connection 1

value

Stainless steel 316 L (1.4404)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Stainless steel

label

Material quality connection 2

value

Stainless steel 316 L (1.4404)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Insert (push-fitting)

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

Main colour fitting

value

Grey

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-24°C - 114°C

label

Medium temperature (continuous) (imperial)

value

-11.2°F - 237.2°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

25206

carbon footprint (A-C) embodied carbon

0.39kgCO2e

data source

TM65

item number

25210

carbon footprint (A-C) embodied carbon

0.57kgCO2e

data source

TM65

item number

25212

carbon footprint (A-C) embodied carbon

0.57kgCO2e

data source

TM65

item number

25220

carbon footprint (A-C) embodied carbon

0.51kgCO2e

data source

TM65

item number

25222

carbon footprint (A-C) embodied carbon

0.69kgCO2e

data source

TM65

item number

25223

carbon footprint (A-C) embodied carbon

1.15kgCO2e

data source

TM65

item number

25224

carbon footprint (A-C) embodied carbon

0.79kgCO2e

data source

TM65

item number

25225

carbon footprint (A-C) embodied carbon

1.17kgCO2e

data source

TM65

item number

25230

carbon footprint (A-C) embodied carbon

3.03kgCO2e

data source

TM65

item number

25232

carbon footprint (A-C) embodied carbon

3.99kgCO2e

data source

TM65

item number

25234

carbon footprint (A-C) embodied carbon

4.5kgCO2e

data source

TM65
