group: TS18

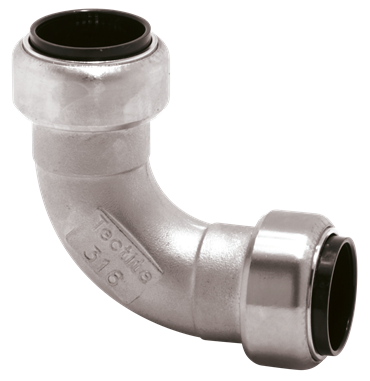

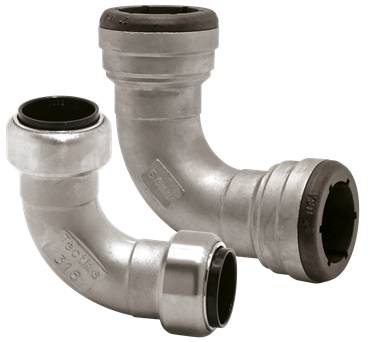

The VSH Tectite 316 TS18 is a slow bend with two push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
industry
BSI Kitemark
DVGW Wasser
KIWA
NSF
UK water regulation 4
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
54x26x54 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
05022050260048
item number
size
18
dimensions
62x29x62 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050260079
item number
size
22
dimensions
71x34x71 mm
weight
0.14 kg
packaging
bag (5 pce)
gtin
05022050260109
item number
size
28
dimensions
87x42x87 mm
weight
0.24 kg
packaging
bag (5 pce)
gtin
05022050260130
item number
size
35
dimensions
129x60x129 mm
weight
0.57 kg
packaging
bag (1 pce)
gtin
05022050260154
item number
size
42
dimensions
148x71x148 mm
weight
0.8 kg
packaging
bag (1 pce)
gtin
05022050260178
item number
size
54
dimensions
175x83x175 mm
weight
1.2 kg
packaging
bag (1 pce)
gtin
05022050260192
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
radius
angle
item number
26003size
15
d1
15.0
DN1
DN12
l1
41
z1
18
d2
15.0
DN2
DN12
l2
41
z2
18
radius
23
angle
90
item number
26005size
18
d1
18.0
DN1
DN15
l1
47
z1
24
d2
18.0
DN2
DN15
l2
47
z2
24
radius
29
angle
90
item number
26007size
22
d1
22.0
DN1
DN20
l1
54
z1
27
d2
22.0
DN2
DN20
l2
54
z2
27
radius
33
angle
90
item number
26008size
28
d1
28.0
DN1
DN25
l1
66
z1
35
d2
28.0
DN2
DN25
l2
66
z2
35
radius
42
angle
90
item number
26009size
35
d1
35.0
DN1
DN32
l1
99
z1
42
d2
35.0
DN2
DN32
l2
99
z2
42
radius
54
angle
90
item number
26010size
42
d1
42.0
DN1
DN40
l1
112
z1
50
d2
42.0
DN2
DN40
l2
112
z2
50
radius
64
angle
90
item number
26011size
54
d1
54.0
DN1
DN50
l1
133
z1
65
d2
54.0
DN2
DN50
l2
133
z2
65
radius
82
angle
90
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
Bend (90º)
connection type
push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
73072980
brand
VSH
series
Tectite 316
product type
TS18
UNSPS
40172807
max operating pressure liquid
value depends on the item view items
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
label
value
label
ETIM class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Main colour fitting
value
Grey
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
