group: TS12

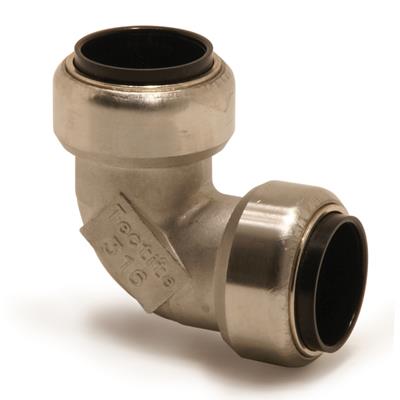

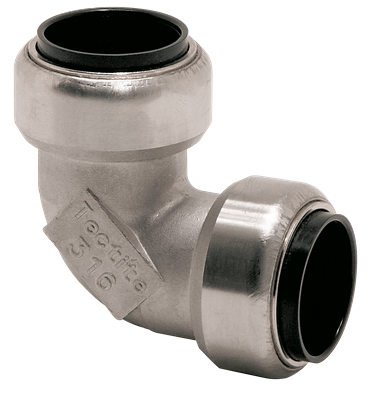

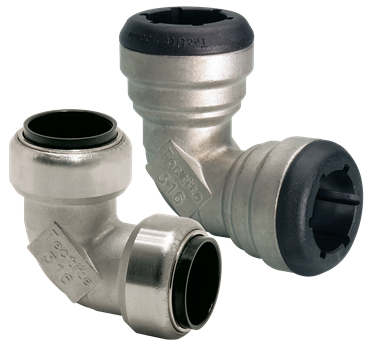

The VSH Tectite 316 TS12 is a 90° elbow with two push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
industry
BSI Kitemark
CSN
DVGW Wasser
KIWA
UK water regulation 4
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
46x26x46 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
05022050255174
item number
size
18
dimensions
49x29x49 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
05022050255211
item number
size
22
dimensions
57x34x57 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
05022050255259
item number
size
28
dimensions
69x42x69 mm
weight
0.19 kg
packaging
bag (5 pce)
gtin
05022050255297
item number
size
35
dimensions
106x60x106 mm
weight
0.46 kg
packaging
bag (1 pce)
gtin
05022050255310
item number
size
42
dimensions
122x71x122 mm
weight
0.72 kg
packaging
bag (1 pce)
gtin
05022050255334
item number
size
54
dimensions
140x83x140 mm
weight
0.99 kg
packaging
bag (1 pce)
gtin
05022050255358
item number
size

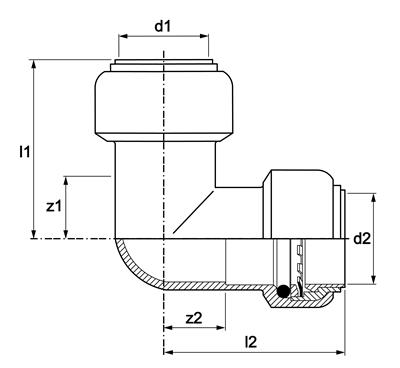

d1
DN1
l1
z1
d2
DN2
l2
z2
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
Elbow (90º)
connection type
push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
73072980
brand
VSH
series
Tectite 316
product type
TS12
UNSPS
40172807
max operating pressure liquid
value depends on the item view items
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
image | jpg
TS12
diagram | jpg
Diagram
installation- & maintenance document | pdf
VSH Tectite installation instructions
certifications | pdf
240702052 WRAS Certificate Tectite 316
certifications | pdf
CSN Tectite PRO/Classic/Sprint/316
certifications | pdf
DVGW VSH Tectite 316
certifications | pdf
Pegler_BSI_All_Fittings_KM_15121
image | jpg

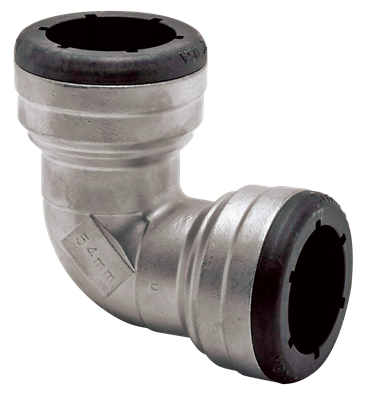

TS12-35-54
certifications | pdf
Tectite Push KIWA
certifications | pdf
VSH Tectite 316 NSF
certifications | pdf
VSH Tectite 316 WRAS
diagram | jpg
Diagram
label
value
label
ETIM class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Main colour fitting
value
Grey
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
