group: TP30
potable water
heating
non-potable water
commercial building
Watermark
item number
size
dimensions
weight
packaging
gtin
item number
size
16x16xG1/2
dimensions
71x27x40 mm
weight
0.1 kg
packaging
-
gtin
05022050609953
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
903212size
16x16xG1/2
d1
16.0
DN1
DN12
l1
36
z1
12
d2
20.0
DN2
DN20
l2
25
z2
13
d3
20.0
DN3
DN20
l3
36
z3
12
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape

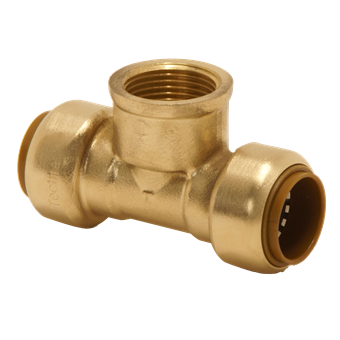

T-piece (90º)
connection type
push, G - female thread gas cylindrical (BSPP), Push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
brand
VSH
series
Tectite Pacific
product type
TP30
UNSPS
40174601
max operating pressure liquid
20 bar
min. medium temperature
10 °C
max medium temperature
95 °C
peak medium temperature
95 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn36Pb2As (CW602N)
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 12
label
Outer pipe diameter connection 1
value
16mm
label
Outer pipe diameter connection 1 (imperial)
value
0.63"
label
Wall thickness, connection 1
value
1.2mm
label
Wall thickness, connection 1 (imperial)
value
0.05"
label
Connection 1
value
Insert (push-fitting)
label
Nominal diameter connection 2
value
DN 20
label
Outer pipe diameter connection 2
value
20mm
label
Outer pipe diameter connection 2 (imperial)
value
0.79"
label
Connection 2
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
Nominal diameter connection 3
value
DN 20
label
Outer pipe diameter connection 3
value
20mm
label
Outer pipe diameter connection 3 (imperial)
value
0.79"
label
Connection 3
value
Insert (push-fitting)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Brass
label
Length of connection 1
value
36mm
label
Length of connection 1 (imperial)
value
1.42"
label
Working length connection 1
value
12mm
label
Working length connection 1 (imperial)
value
0.47"
label
Length of connection 2
value
25mm
label
Length of connection 2 (imperial)
value
0.98"
label
Working length connection 2
value
13mm
label
Working length connection 2 (imperial)
value
0.51"
label
Length of connection 3
value
36mm
label
Length of connection 3 (imperial)
value
1.42"
label
Working length connection 3
value
12mm
label
Working length connection 3 (imperial)
value
0.47"
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
10°C - 95°C
label
Medium temperature (continuous) (imperial)
value
50°F - 203°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
