group: TP25
non-potable water
heating
potable water
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
code
size
25x20x25
d1
25.0
DN1
DN25
l1
31
z1
7
d2
20.0
DN2
DN20
l2
33
z2
9
d3
25.0
DN3
DN25
l3
31
z3
15
item

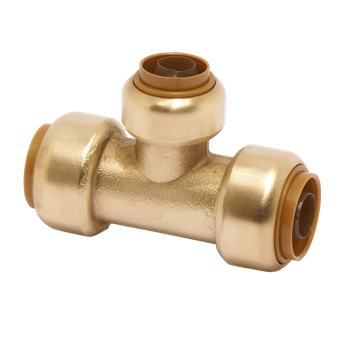

Tectite Pacific reduced branch tee
item number with gtin
TP25 (05022050613424)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
25x20x25
weight
0.2 kg
dimensions
92x38x67 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
T-piece, reducer, 90º
connection type
push
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
10 °C
max medium temperature
95 °C
peak medium temperature
95 °C
product group
fittingen (demountable)
ETIM class
EC003025 Fitting with 3 connectionsbrand
VSH
series
Tectite Pacific
product type
TP25
UNSPS
40174601
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
Yes
label
Multi-part
value
No
label
System specific
value
Yes
label
Nominal diameter connection 1
value
DN 25
label
Outer pipe diameter connection 1
value
25mm
label
Outer pipe diameter connection 1 (imperial)
value
0.98"
label
Connection 1
value
Insert (push-fitting)
label
Nominal diameter connection 2
value
DN 20
label
Outer pipe diameter connection 2
value
20mm
label
Outer pipe diameter connection 2 (imperial)
value
0.79"
label
Connection 2
value
Insert (push-fitting)
label
Nominal diameter connection 3
value
DN 25
label
Outer pipe diameter connection 3
value
25mm
label
Outer pipe diameter connection 3 (imperial)
value
0.98"
label
Connection 3
value
Insert (push-fitting)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Brass
label
Length of connection 1
value
31mm
label
Length of connection 1 (imperial)
value
1.22"
label
Working length connection 1
value
7mm
label
Working length connection 1 (imperial)
value
0.28"
label
Length of connection 2
value
33mm
label
Length of connection 2 (imperial)
value
1.3"
label
Working length connection 2
value
9mm
label
Working length connection 2 (imperial)
value
0.35"
label
Length of connection 3
value
31mm
label
Length of connection 3 (imperial)
value
1.22"
label
Working length connection 3
value
15mm
label
Working length connection 3 (imperial)
value
0.59"
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
10°C - 95°C
label
Medium temperature (continuous) (imperial)
value
50°F - 203°F
label
With drain valve
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
