group: TP15
potable water
heating
non-potable water
commercial building
Watermark
item number
size
dimensions
weight
packaging
gtin
item number
size
16xG1/2
dimensions
57x27x47 mm
weight
0.11 kg
packaging
-
gtin
05022050609717
item number
size
20xG3/4
dimensions
63x34x55 mm
weight
0.16 kg
packaging
-
gtin
05022050609809
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape

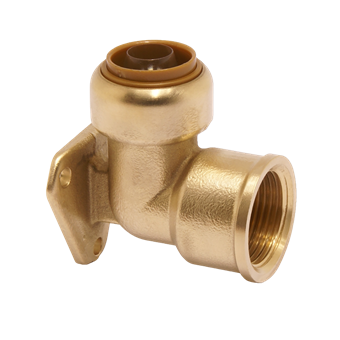

Elbow, Wall plate (90º)
connection type
push, G - female thread gas cylindrical (BSPP)
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003099 Wall plate
brand
VSH
series
Tectite Pacific
product type
TP15
max operating pressure liquid
20 bar
min. medium temperature
10 °C
max medium temperature
95 °C
peak medium temperature
95 °C
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Surface protection
value
Untreated
label
System specific
value
No
label
Connection
value
Insert (push-fitting)
label
Working length connection 1
value
12mm
label
Working length connection 1 (imperial)
value
0.47"
label
Length of connection 2
value
34mm
label
Length of connection 2 (imperial)
value
1.34"
label
Medium temperature (continuous)
value
10°C - 95°C
label
Medium temperature (continuous) (imperial)
value
50°F - 203°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With connection indicator
value
No
label
With protective cap
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
