VSH Tectite TECTSEAL™ 3PS Liners

group: TMLCP3PS

the TMLCP3PS is a Tect-seal 3 piece tube liner for insertion into Tectite tube.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

no applications available

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

44917

size

15

dimensions

20x15x15 mm

weight

0 kg

packaging

bag (50 pce)

gtin

05022050357700

item number

44918

size

22

dimensions

22x22x22 mm

weight

0 kg

packaging

bag (26 pce)

gtin

05022050357724

item number

size

d1

l1

z1

D1

item number

44917

size

15

d1

11.0

l1

20

z1

15

D1

15

item number

44918

size

22

d1

17.6

l1

23

z1

18

D1

22

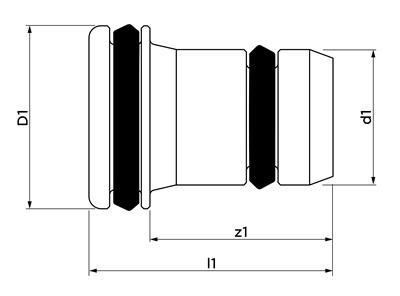

technical drawing for product

characteristics

materials

plastic

finishing

none

general

product group

fittings (accessories (fittings))

ETIM class

EC010626 Insert part of coupling

HS code

40169957

brand

VSH

series

Tectite

product type

TMLCP3PS

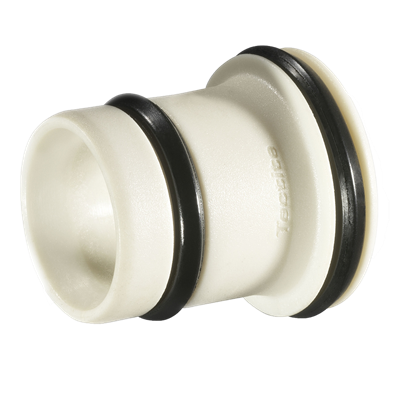

image for TMLCP3PS

image | png

TMLCP3PS

image for Diagram

diagram | jpg

Diagram

label

value

label

ETIM class

label

Material

value

Polyethylene (PE)

item number

carbon footprint (A-C) embodied carbon

data source

item number

44917

carbon footprint (A-C) embodied carbon

0.01kgCO2e

data source

TM65

item number

44918

carbon footprint (A-C) embodied carbon

0.02kgCO2e

data source

TM65
