Tectite Classic 2 Port Manifold

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

commercial building

commercial building

approvals

DVGW Wasser

DVGW Wasser

ETA

ETA

RISE

RISE

STF

STF

UK water regulation 4

UK water regulation 4

item number

size

dimensions

weight

packaging

gtin

item number

45943

size

22x22x15

dimensions

120x220x325 mm

weight

0.23 kg

packaging

bag (2 pce)

gtin

05022050479143

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

item number

45943

size

22x22x15

d1

22.0

DN1

DN20

l1

38

z1

10

d2

15.0

DN2

DN20

l2

50

z2

13

d3

15.0

DN3

DN15

l3

43

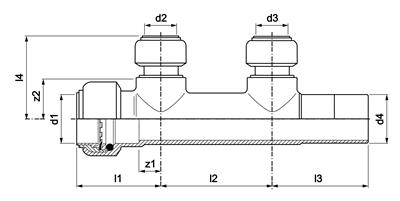

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

Cross

connection type

push, Push, tube end

sealing

EPDM

general

product group

manifolds (demountable)

ETIM class

EC010298 Manifold valve

HS code

74122000

brand

VSH

series

Tectite Classic

product type

TMF2

UNSPS

40141761

scip

054b35f0-c9aa-49ba-ba74-e8b35a8de72e

technical

max operating pressure liquid

16 bar

min. medium temperature

-24 °C

max medium temperature

95 °C

peak medium temperature

95 °C

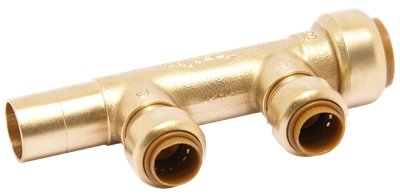

image for TMF2

image | png

TMF2

image for Diagram

diagram | jpg

Diagram

certifications | pdf

certifications | pdf

20807_ETA_Tectite_Classic_10-28mm_PEX_23

certifications | pdf

ETA_classic_and_sprint_VA_1.22_19348

certifications | pdf

VSH Tectite Classic & Pro WRAS

certifications | pdf

VSH Tectite Classic & Pro WRAS

link to sheet | pdf

VSH Tectite Classic SDS

certifications | pdf

VSH Tectite Classic STF

certifications | pdf

VSH_Tectite_Classic_Pro_OVGW

certifications | pdf

WRAS REG4 Tectite Manifold

certifications | pdf

ATec_14.1_16-2241_V1

label

value

label

ETIM class

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

item number

carbon footprint (A-C) embodied carbon

data source

item number

45943

carbon footprint (A-C) embodied carbon

1.05kgCO2e

data source

TM65
