group: TM81

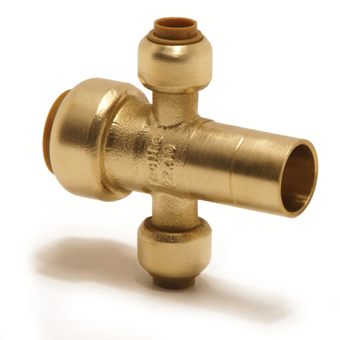

The VSH Tectite Classic TM81 is a manifold with a tube and three push ends By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
commercial building
KIWA
STF
UK water regulation 4
code
size
dimensions
weight
packaging
gtin
code
size
22x22x10x10
dimensions
35x75x75 mm
weight
0.12 kg
packaging
bag (2 pce)
gtin
05022050013743
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
d4
DN4
l4
z4
code
size
22x22x10x10
d1
22.0
DN1
DN20
l1
40
z1
11
d2
10.0
DN2
DN20
l2
39
z2
15
d3
15.0
DN3
DN10
l3
76
z3
14
d4
10.0
DN4
DN20
l4
39
z4
15
item
VSH Tectite Classic Manifold (3 x push x male)
item number with gtin
TM81 (05022050013743)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
22x22x10x10
weight
0.12 kg
dimensions
35x75x75 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
Cross
connection type
push
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
16 bar
min. medium temperature
-24 °C
max medium temperature
95 °C
peak medium temperature
95 °C
product group
verdelers (demountable)
ETIM class
EC010298 Manifold valveHS code
74122000
brand
VSH
series
Tectite Classic
product type
TM81
UNSPS
40141761
scip
054b35f0-c9aa-49ba-ba74-e8b35a8de72e
label
value
label
etim-class
value
EC010298 Manifold valvelabel
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
code
carbon footprint (A-C) embodied carbon
data source
