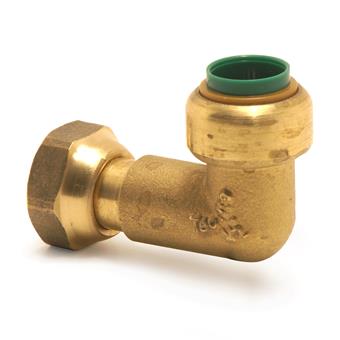

VSH Tectite Irish bent tap connector (push x nut end)

group: TI63

The VSH Tectite Irish TI63 is a bent tap connector with a push fit and nut end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.

  • demountable
  • no heat work required
  • fast insulation
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

NSAI

NSAI

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

slw2

angle

item number

40970

size

1/2"xG1/2"

d1

21.0

DN1

1/2" (DN15)

l1

47

z1

39

d2

21.3

DN2

1/2" (DN15)

l2

33

z2

2

slw2

24

angle

90

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

Elbow (90º)

connection type

push, G - female thread gas cylindrical (BSPP)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Tectite Irish

product type

TI63

UNSPS

40172501

scip

054b35f0-c9aa-49ba-ba74-e8b35a8de72e

technical

max operating pressure liquid

16 bar

min. medium temperature

-24 °C

max medium temperature

95 °C

image for TI63

image | png

TI63

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

VSH Tectite installation instructions

certifications | pdf

VSH Tectite Irish NSAI

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

2-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

1/2 inch (15)

label

Outer pipe diameter connection 1

value

21mm

label

Outer pipe diameter connection 1 (imperial)

value

0.83"

label

Wall thickness, connection 1

value

1.2mm

label

Wall thickness, connection 1 (imperial)

value

0.05"

label

Connection 1

value

Insert (push-fitting)

label

Nominal diameter connection 2

value

1/2 inch (15)

label

Outer pipe diameter connection 2

value

21.3mm

label

Outer pipe diameter connection 2 (imperial)

value

0.84"

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

Main colour fitting

value

Brass

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Length

value

57mm

label

Length of connection 1

value

47mm

label

Length of connection 1 (imperial)

value

1.85"

label

Working length connection 1

value

39mm

label

Working length connection 1 (imperial)

value

1.54"

label

Length of connection 2

value

33mm

label

Length of connection 2 (imperial)

value

1.3"

label

Working length connection 2

value

2mm

label

Working length connection 2 (imperial)

value

0.08"

label

Medium temperature (continuous)

value

-24°C - 95°C

label

Medium temperature (continuous) (imperial)

value

-11.2°F - 203°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

40970

carbon footprint (A-C) embodied carbon

0.42kgCO2e

data source

TM65
