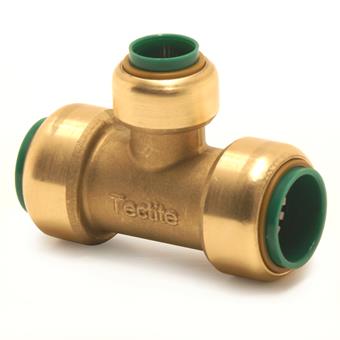

VSH Tectite Irish T-piece reduced branch (3 x push)

group: TI25

The VSH Tectite Irish TI25 is a reduced T-piece with three push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.

  • demountable
  • no heat work required
  • fast insulation
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

NSAI

NSAI

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

40940

size

3/4"x3/4"x1/2"

d1

27.4

DN1

3/4" (DN20)

l1

38

z1

9

d2

27.4

DN2

3/4" (DN20)

l2

38

z2

14

d3

21.0

DN3

1/2" (DN15)

l3

38

z3

9

item number

40942

size

1"x1"x3/4"

d1

34.0

DN1

1" (DN25)

l1

46

z1

12

d2

34.0

DN2

1" (DN25)

l2

44

z2

15

d3

27.4

DN3

3/4" (DN20)

l3

46

z3

12

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

T-piece, reducer (90º)

connection type

push, Push

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

brand

VSH

series

Tectite Irish

product type

TI25

UNSPS

40174601

scip

054b35f0-c9aa-49ba-ba74-e8b35a8de72e

technical

max operating pressure liquid

16 bar

min. medium temperature

-24 °C

max medium temperature

95 °C

image for TI25

image | png

TI25

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

VSH Tectite installation instructions

certifications | pdf

VSH Tectite Irish NSAI

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Brass

label

Material quality connection 3

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 3

value

Untreated

label

Surface treatment connection 3

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

Yes

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Insert (push-fitting)

label

Connection 2

value

Insert (push-fitting)

label

Connection 3

value

Insert (push-fitting)

label

Flange compression class

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Brass

label

High tensile strength

value

Yes

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-24°C - 95°C

label

Medium temperature (continuous) (imperial)

value

-11.2°F - 203°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

40940

carbon footprint (A-C) embodied carbon

0.67kgCO2e

data source

TM65

item number

40942

carbon footprint (A-C) embodied carbon

1.05kgCO2e

data source

TM65
