group: TI24

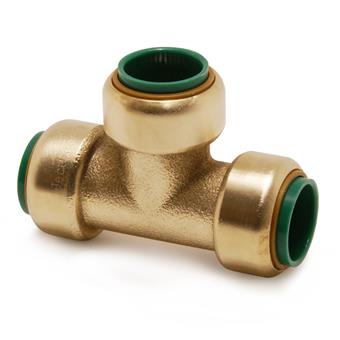

The VSH Tectite Irish TI24 is a T-piece with three push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
compressed air
commercial building
industry
NSAI
item number
size
dimensions
weight
packaging
gtin
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
40930size
1/2"
d1
21.0
DN1
1/2" (DN15)
l1
33
z1
9
d2
21.0
DN2
1/2" (DN15)
l2
33
z2
9
d3
21.0
DN3
1/2" (DN15)
l3
33
z3
9
item number
40931size
3/4"
d1
27.4
DN1
3/4" (DN20)
l1
41
z1
12
d2
27.4
DN2
3/4" (DN20)
l2
41
z2
12
d3
27.4
DN3
3/4" (DN20)
l3
41
z3
12
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
T-piece (90º)
connection type
push, Push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
brand
VSH
series
Tectite Irish
product type
TI24
UNSPS
40174601
scip
054b35f0-c9aa-49ba-ba74-e8b35a8de72e
max operating pressure liquid
16 bar
min. medium temperature
-24 °C
max medium temperature
95 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Connection 3
value
Insert (push-fitting)
label
Flange compression class
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Brass
label
High tensile strength
value
Yes
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-24°C - 95°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 203°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
