VSH Tectite Demounting End Cap

group: TDX

The VSH Tectite TDX is a demountable endcap, suitable for Tectite Pro and 316 in the seizes 35 - 54mm.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

no applications available

segments

industry

industry

commercial building

commercial building

approvals

no approvals available

  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM
  • sustainability

code

size

dimensions

weight

packaging

gtin

code

46146

size

35

dimensions

30x60x60 mm

weight

0.04 kg

packaging

bag (1 pce)

gtin

05022050461469

code

46151

size

42

dimensions

30x65x65 mm

weight

0.06 kg

packaging

bag (1 pce)

gtin

05022050461568

code

46156

size

54

dimensions

35x80x80 mm

weight

0.07 kg

packaging

bag (1 pce)

gtin

05022050461827

code

size

d1

DN1

l1

D1

code

46146

size

35

d1

35.0

DN1

2" (DN50)

l1

28

D1

59

code

46151

size

42

d1

42.0

DN1

2 1/2" (DN65)

l1

28

D1

70

code

46156

size

54

d1

54.0

DN1

3" (DN80)

l1

28

D1

81

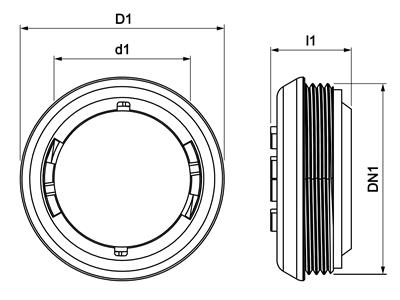

technical drawing for product

product info

item

VSH Tectite Demounting End Cap

item number with gtin

TDX

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

0.07 kg

dimensions

35x80x80 mm

characteristics

materials

plastic (Composite)

finishing

none

general

product group

fittingen (accessories (fittings))

HS code

74122000

brand

VSH

series

Tectite

product type

TDX

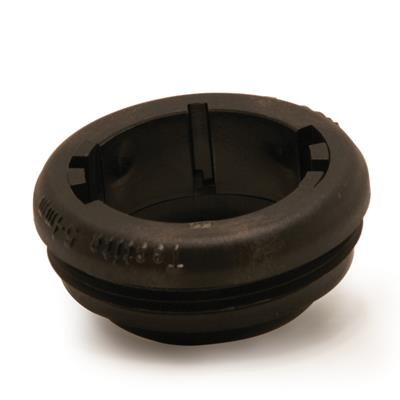

image for TDX Demounting End Cap

image | jpg

TDX Demounting End Cap

image for Diagram

diagram | jpg

Diagram

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

Type of accessory/spare part

value

Other

label

Accessory

value

Yes

label

Spare part

value

Yes

label

Material

value

Polyethylene (PE) (expired)

code

carbon footprint (A-C) embodied carbon

data source

code

46146

carbon footprint (A-C) embodied carbon

0.42kgCO2e

data source

TM65

code

46151

carbon footprint (A-C) embodied carbon

0.62kgCO2e

data source

TM65

code

46156

carbon footprint (A-C) embodied carbon

0.72kgCO2e

data source

TM65
