Pegler Terrier LS towel rail straight

Product Image for Pegler Terrier LS towel rail straight
Product Image for Pegler Terrier LS towel rail straight

group: TDECCPLSSTR

The Pegler Terrier 368ALLCPLS is a manually operated straight pattern Lock shield which has a fully chrome plated body and handle. It has screw down handles for anti-tamper and safety with a long-life glad packing with rise spindle for extended reliability
  • approved to BS 2767-10, ensuring water working pressure up to 10bar (non-shock).
  • screw down handles for anti-tamper and safety.
  • quick and easy to install.
    • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    show all
    show less

    segments

    commercial building

    commercial building

    show all
    show less

    approvals

    BSI Kitemark

    BSI Kitemark

    show all
    show less

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    632215

    size

    15xR1/2

    dimensions

    30x70x105 mm

    weight

    0.22 kg

    packaging

    bag (1 pce)

    gtin

    05013866073830

    item number

    size

    item number

    632215

    size

    15xR1/2

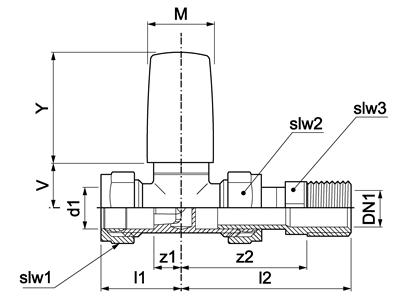

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    compression, R - male thread gas conical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (MRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818039

    brand

    Pegler

    series

    Terrier Decorative

    product type

    TDECCPLSSTR

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

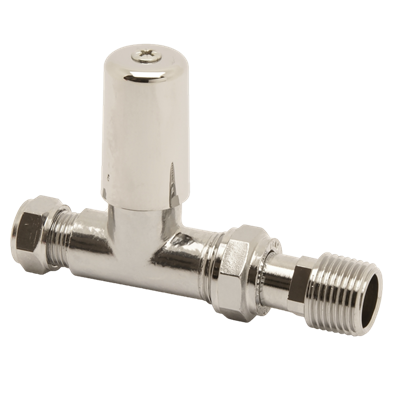

    image for 368ALLCPLS

    image | png

    368ALLCPLS

    image for Diagram

    diagram | jpg

    Diagram

    label

    value

    label

    ETIM class

    value

    EC010136 Radiator valve

    label

    Housing material

    value

    Brass

    label

    Shape

    value

    Right-angled

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    label

    Height

    value

    105mm

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    632215

    carbon footprint (A-C) embodied carbon

    0.78kgCO2e

    data source

    TM65
