Pegler Terrier LS towel rail

group: TDECCPLS

The Pegler Terrier 367ALLCPLS is a manually operated angle pattern Lock shield with a fully chrome plated body and handle. It has screw down handles for anti-tamper and safety with a long-life glad packing with rise spindle for extended reliability
  • approved to BS 2767-10, ensuring water working pressure up to 10bar (non-shock).
  • fully chromed plated body and handle for a modern stylish look.
  • screw down handles for anti-tamper and safety.
  • quick and easy to install.
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    BSI Kitemark

    BSI Kitemark

    item number

    size

    item number

    632205

    size

    15xR1/2

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    compression, R - male thread gas conical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (MRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818039

    brand

    Pegler

    series

    Terrier Decorative

    product type

    TDECCPLS

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

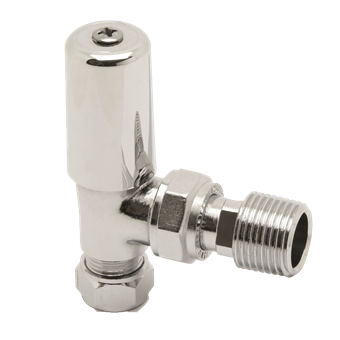

    image for 367ALLCPLS

    image | png

    367ALLCPLS

    image for Diagram

    diagram | jpg

    Diagram

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Shape

    value

    Right-angled

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    label

    Height

    value

    80mm

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    632205

    carbon footprint (A-C) embodied carbon

    0.67kgCO2e

    data source

    TM65
