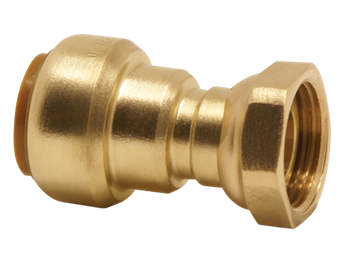

VSH Tectite Classic tap connector (push x nut end)

group: T62

The VSH Tectite Classic T62 is a tap connector with a push fit and nut end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.

  • demountable
  • no heat work required
  • fast insulation
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

residential

residential

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

STF

STF

UK water regulation 4

UK water regulation 4

item number

size

d1

DN1

l1

z1

DN2

l2

z2

slw2

item number

45902

size

15xG1/2"

d1

15.0

DN1

DN15

l1

36

z1

2

DN2

1/2" (DN15)

l2

13

z2

13

slw2

24

item number

45171

size

15xG3/4"

d1

15.0

DN1

DN15

l1

35

z1

2

DN2

3/4" (DN20)

l2

13

z2

11

slw2

31

item number

45903

size

22xG3/4"

d1

22.0

DN1

DN20

l1

46

z1

2

DN2

3/4" (DN20)

l2

13

z2

17

slw2

31

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

straight, reducer

connection type

push, G - female thread gas cylindrical (BSPP)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Tectite Classic

product type

T62

UNSPS

40174901

scip

054b35f0-c9aa-49ba-ba74-e8b35a8de72e

technical

max operating pressure liquid

16 bar

min. medium temperature

-24 °C

max medium temperature

95 °C

peak medium temperature

95 °C

image for T62

image | png

T62

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

VSH Tectite installation instructions

installation- & maintenance document | pdf

VSH Tectite installation instructions

certifications | pdf

certifications | pdf

20807_ETA_Tectite_Classic_10-28mm_PEX_23

certifications | pdf

ETA_classic_and_sprint_VA_1.22_19348

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

certifications | pdf

Tectite Push KIWA

certifications | pdf

VSH Tectite ACS

certifications | pdf

VSH Tectite Classic & Pro WRAS

link to sheet | pdf

VSH Tectite Classic SDS

certifications | pdf

VSH Tectite Classic STF

certifications | pdf

VSH_Tectite_Classic_Pro_OVGW

certifications | pdf

ATec_14.1_16-2241_V1

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Insert (push-fitting)

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

Main colour fitting

value

Brass

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Length

value

45mm

label

Working length connection 1

value

2mm

label

Working length connection 1 (imperial)

value

0.08"

label

Length of connection 2

value

13mm

label

Length of connection 2 (imperial)

value

0.51"

label

Medium temperature (continuous)

value

-24°C - 95°C

label

Medium temperature (continuous) (imperial)

value

-11.2°F - 203°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

45902

carbon footprint (A-C) embodied carbon

0.25kgCO2e

data source

TM65

item number

45171

carbon footprint (A-C) embodied carbon

0.34kgCO2e

data source

TM65

item number

45903

carbon footprint (A-C) embodied carbon

0.43kgCO2e

data source

TM65
