group: T3TRVSTR
heating
commercial building
BSI Kitemark KM 786727
code
size
dimensions
weight
packaging
gtin
code
size
DN1
l1
z1
DN2
l2
z2
item

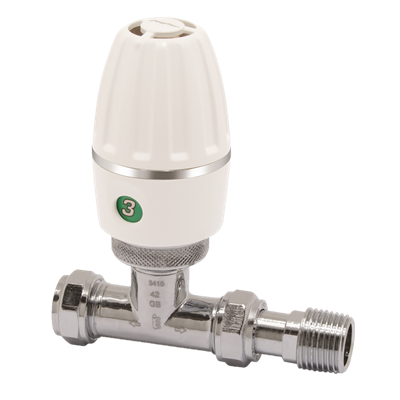

straight pattern thermostatic radiator valve
item number with gtin
T3TRVSTR (05022050500083)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15
weight
0.06 kg
dimensions
64x72x88 mm
color
chrome
materials
brass, plastic (CW617N, ABS)
finishing
polished chrome
shape
Elbow
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 10
sealing
EPDM
max operating pressure liquid
10 bar
min. medium temperature
4 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
radiator valves (TRV)
ETIM class
EC010136 Radiator valvebrand
Pegler
series
Terrier 3
product type
T3TRVSTR
UNSPS
40141609
label
value
label
etim-class
value
EC010136 Radiator valvelabel
Housing material
value
Brass
label
Shape
value
Right-angled
label
Operation
value
Manually operated
label
Suitable for single pipe system
value
No
label
Suitable for two pipe system
value
No
label
Length of connection 1
value
35mm
label
Length of connection 1 (imperial)
value
1.38"
label
Working length connection 1
value
11mm
label
Working length connection 1 (imperial)
value
0.43"
label
Length of connection 2
value
63mm
label
Length of connection 2 (imperial)
value
2.48"
label
Working length connection 2
value
49mm
label
Working length connection 2 (imperial)
value
1.93"
label
Height
value
88mm
label
Height (imperial)
value
3.46"
code
