group: T3TRVPFECPDLS
heating
commercial building
BSI Kitemark KM 786727
code
size
dimensions
weight
packaging
gtin
code
size
10xR1/2
dimensions
71x83x87 mm
weight
0.54 kg
packaging
box (1 pce)
gtin
05022050500205
code
size
15xR1/2
dimensions
71x83x87 mm
weight
0.63 kg
packaging
box (1 pce)
gtin
05022050500236
item

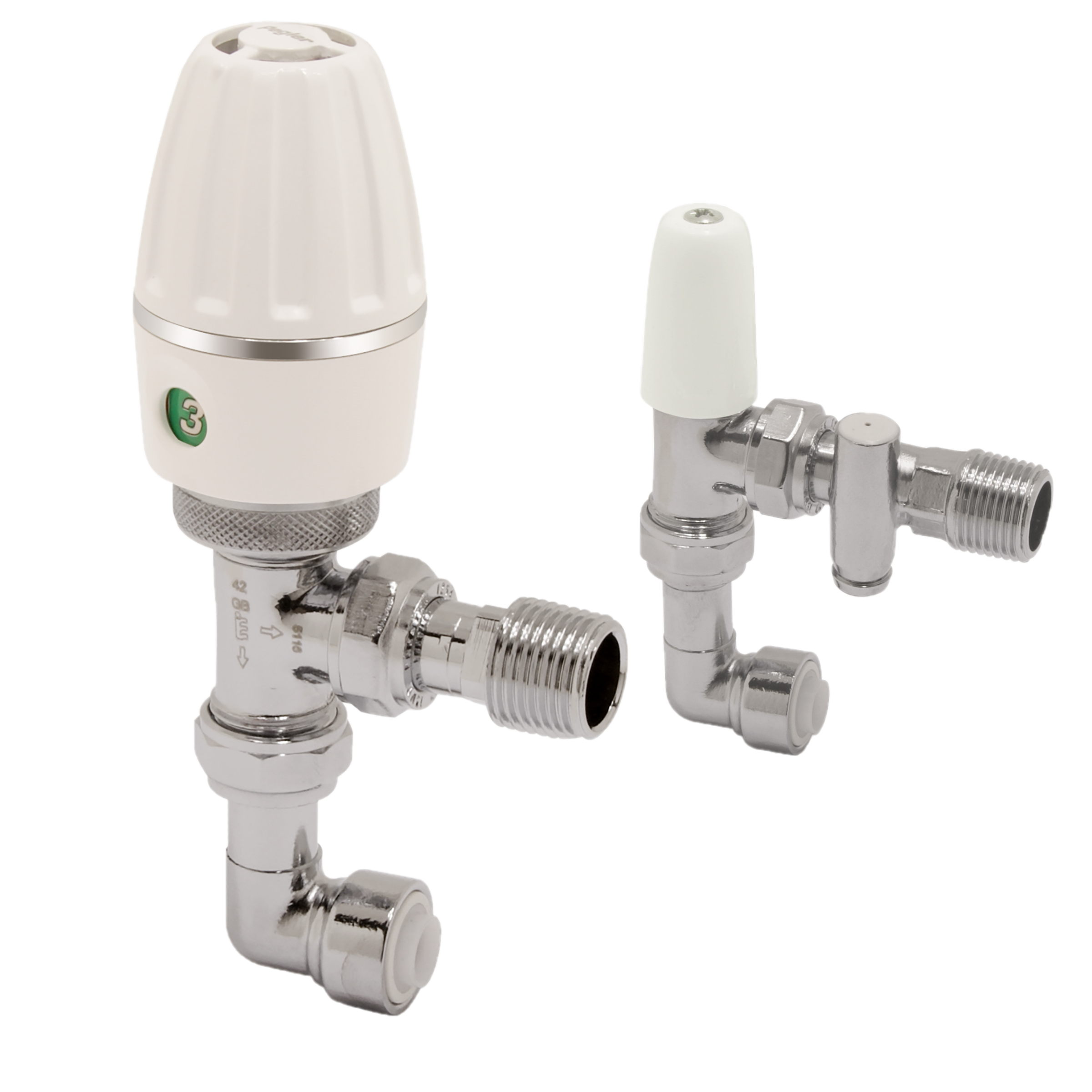

Pegler Terrier TRV and LS inc drain and elbow (pack)
item number with gtin
T3TRVPFECPDLS
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.63 kg
dimensions
71x83x87 mm
color
chrome
materials
brass, plastic (CW617N, ABS)
finishing
polished chrome
shape
Elbow
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 10
sealing
EPDM
max operating pressure liquid
10 bar
min. medium temperature
4 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
appendages (TRV)
ETIM class
EC010136 Radiator valvebrand
Pegler
series
Terrier 3
product type
T3TRVPFECPDLS
UNSPS
40141609
label
value
label
etim-class
value
EC010136 Radiator valvelabel
Housing material
value
Brass
label
Shape
value
Right-angled
label
Operation
value
Manually operated
label
Suitable for single pipe system
value
No
label
Suitable for two pipe system
value
No
label
Length of connection 1
value
73mm
label
Length of connection 1 (imperial)
value
2.87"
label
Working length connection 1
value
12mm
label
Working length connection 1 (imperial)
value
0.47"
label
Length of connection 2
value
59mm
label
Length of connection 2 (imperial)
value
2.32"
label
Working length connection 2
value
45mm
label
Working length connection 2 (imperial)
value
1.77"
label
Height
value
87mm
label
Height (imperial)
value
3.43"
