angle pattern trv intpf vertical or horizontal mounting

group: T3TRVIPF

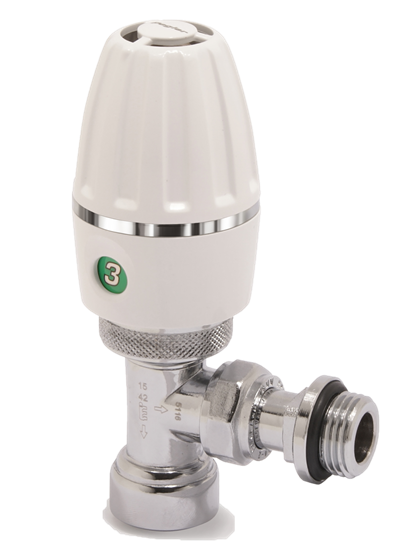

The Pegler Terrier T3TRVIPF is a reliable, easy to operate, angle pattern thermostatic radiator valve, which is designed for making your heating system more efficient by stopping the flow once the heat is not required, complete with an easy-to-read temperature setting for the visually impaired. It is proven to deliver annual cost savings through improved temperature control and without compromising on comfort.

  • Accurate and responsive performance due to Terriers unique hot and cold air cycle technology.
  • Energy saving by giving a faster temperature response with reduced hysteresis and ‘chimney’ effect and pure copper element sensor.
  • Easy operation with inclusive design with both visual and dexterity support through eco indicator, large grip with lower torque operation and intuitive temperature settings.
  • Practical and stylish design with subtle hint of the enclosed design, chrome accents, oversized colour coded setting window for easy identification all enclosed in a gloss white finish.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

item number

size

DN1

l1

z1

DN2

l2

z2

item number

631821

size

15xR1/2

DN1

DN12

l1

35

z1

50

DN2

DN12

l2

60

z2

22

item number

631820

size

10xR1/2

DN1

DN12

l1

35

z1

50

DN2

DN12

l2

60

z2

22

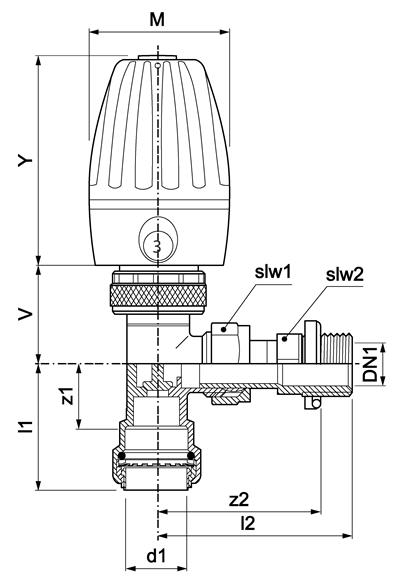

technical drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (TRV)

ETIM class

EC010136 Radiator valve

brand

Pegler

series

Terrier 3

product type

T3TRVIPF

UNSPS

40141609

label

value

label

ETIM class

label

Housing material

value

Brass

label

Shape

value

Right-angled

label

Operation

value

Manually operated

label

Suitable for single pipe system

value

No

label

Suitable for two pipe system

value

No

label

Length of connection 1

value

35mm

label

Length of connection 1 (imperial)

value

1.38"

label

Working length connection 1

value

50mm

label

Working length connection 1 (imperial)

value

1.97"

label

Length of connection 2

value

60mm

label

Length of connection 2 (imperial)

value

2.36"

label

Working length connection 2

value

22mm

label

Working length connection 2 (imperial)

value

0.87"

label

Height

value

88mm
