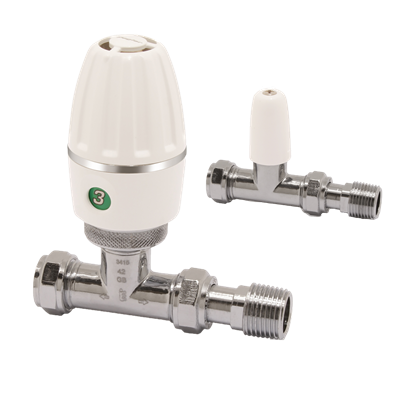

Pegler Terrier TRV and LS (pack)

group: T3TRVCPLSSTR

The Pegler Terrier T3TRV368LSSTR is a pack containing a T3TRVSTR and a matching 368TCPLS this set is a reliable, easy to operate, straight pattern thermostatic radiator valve set, which is designed for making your heating system more efficient by stopping the flow once the heat is not required, complete with an easy-to-read temperature setting for the visually impaired. It is proven to deliver annual cost savings through improved temperature control and without compromising on comfort.

  • Accurate and responsive performance due to Terriers unique hot and cold air cycle technology.
  • Energy saving by giving a faster temperature response with reduced hysteresis and ‘chimney’ effect and pure copper element sensor.
  • Easy operation with inclusive design with both visual and dexterity support through eco indicator, large grip with lower torque operation and intuitive temperature settings.
  • Practical and stylish design with subtle hint of the enclosed design, chrome accents, oversized colour coded setting window for easy identification all enclosed in a gloss white finish.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

item number

size

DN1

l1

z1

DN2

l2

z2

item number

631807

size

15xR1/2

DN1

DN12

l1

35

z1

11

DN2

DN12

l2

63

z2

49

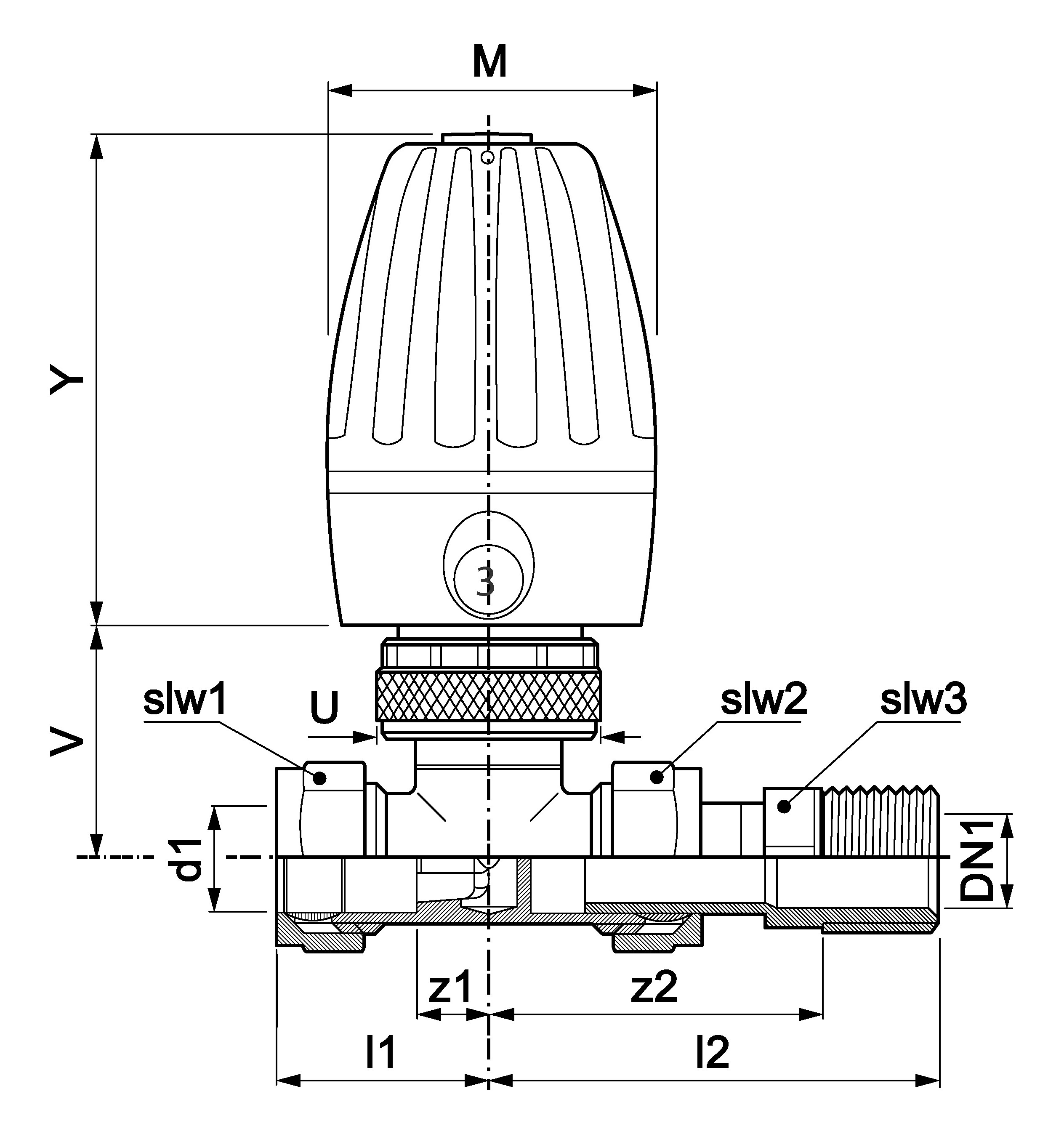

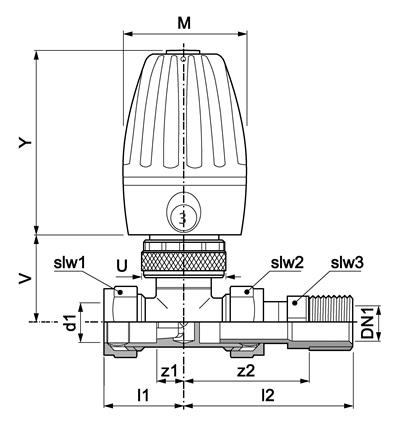

technical drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (TRV)

ETIM class

EC010136 Radiator valve

HS code

84818031

brand

Pegler

series

Terrier 3

product type

T3TRVCPLSSTR

UNSPS

40141609

label

value

label

ETIM class

label

Housing material

value

Brass

label

Shape

value

Right-angled

label

Operation

value

Manually operated

label

Suitable for single pipe system

value

No

label

Suitable for two pipe system

value

No

label

Length of connection 1

value

35mm

label

Length of connection 1 (imperial)

value

1.38"

label

Working length connection 1

value

11mm

label

Working length connection 1 (imperial)

value

0.43"

label

Length of connection 2

value

63mm

label

Length of connection 2 (imperial)

value

2.48"

label

Working length connection 2

value

49mm

label

Working length connection 2 (imperial)

value

1.93"

label

Height

value

87mm
