group: T3TRV
heating
commercial building
BSI Kitemark
item number
size
dimensions
weight
packaging
gtin
item number
size
10xR1/2
dimensions
64x72x88 mm
weight
0.25 kg
packaging
box (1 pce)
gtin
05022050500021
item number
size
15xR1/2
dimensions
64x72x88 mm
weight
0.27 kg
packaging
box (1 pce)
gtin
05022050500038
color
chrome
materials
plastic, brass (CW617N, ABS)
finishing
polished chrome
shape
Elbow
connection type
compression, R - male thread gas conical (BSPT)
sealing
EPDM
product group
radiator valves (TRV)
ETIM class
EC010136 Radiator valve
brand
Pegler
series
Terrier 3
product type
T3TRV
UNSPS
40141609
max operating pressure liquid
10 bar
min. medium temperature
4 °C
max medium temperature
120 °C
peak medium temperature
120 °C
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Shape
value
Right-angled
label
Operation
value
Manually operated
label
Suitable for single pipe system
value
No
label
Suitable for two pipe system
value
No
label

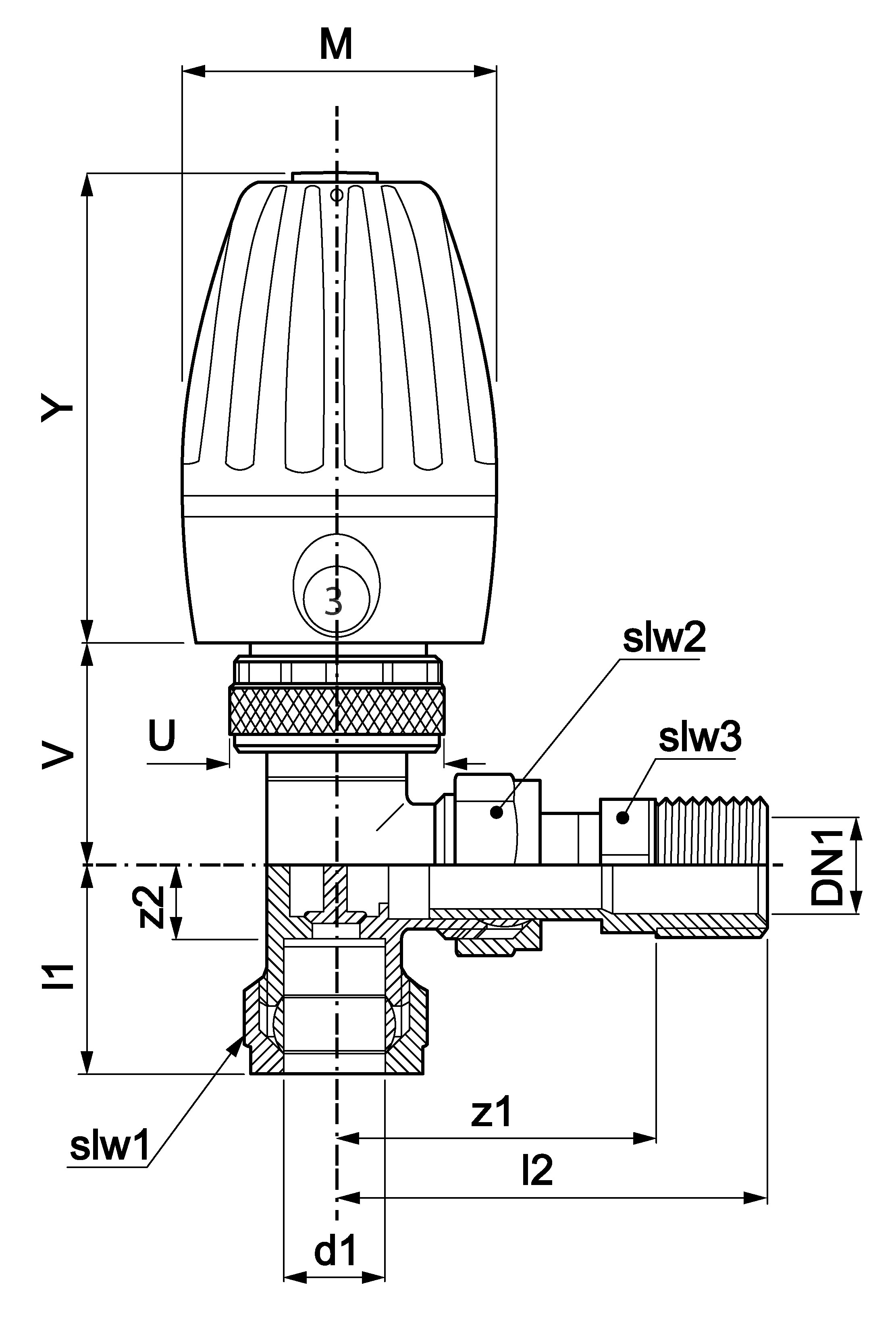

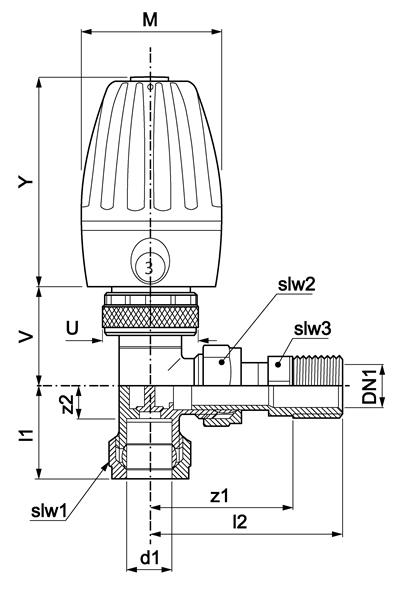

Length of connection 1
value
30mm
label
Length of connection 1 (imperial)
value
1.18"
label
Working length connection 1
value
45mm
label
Working length connection 1 (imperial)
value
1.77"
label
Length of connection 2
value
59mm
label
Length of connection 2 (imperial)
value
2.32"
label
Working length connection 2
value
10mm
label
Working length connection 2 (imperial)
value
0.39"
label
Height
value
88mm
label
Height (imperial)
value
3.46"
