group: T26

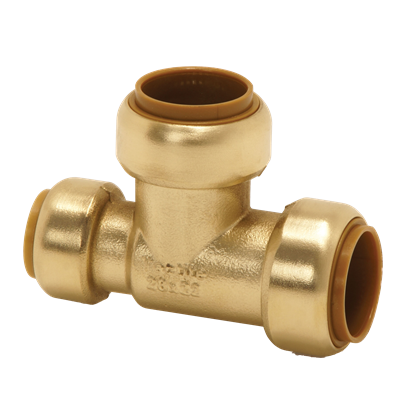

The VSH Tectite Classic T26 is a reduced T-piece with three push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
residential
commercial building
BSI Kitemark
CSN
DVGW Wasser
EMI
ETA
KIWA
ÖVGW Wasser
RISE
SINTEF
STF
ÜA
WRAS
item number
size
weight
dimensions
packaging
gtin
item number
size
22x15x22
weight
0.13 kg
dimensions
75x20x55 mm
packaging
bag (5 pce)
gtin
05022050013125
item number
size
28x22x28
weight
0.21 kg
dimensions
90x40x70 mm
packaging
bag (2 pce)
gtin
05022050013163

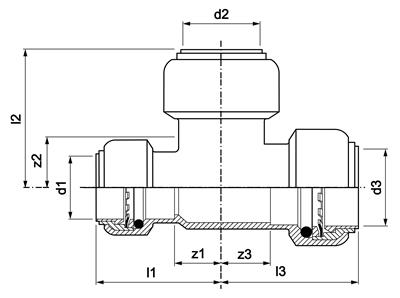

item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
45786
size
22x15x22
d1
15.0
DN1
DN20
l1
37
z1
12
d2
22.0
DN2
DN15
l2
41
z2
13
d3
22.0
DN3
DN20
l3
41
z3
12
item number
45793
size
28x22x28
d1
22.0
DN1
DN25
l1
44
z1
17
d2
28.0
DN2
DN20
l2
48
z2
15
d3
28.0
DN3
DN25
l3
48
z3
16
color
brass
materials
brass (CW602N (DZR), CW626N (DZR))
finishing
none
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
shape
T-piece, reducer (90º)
connection type
push, Push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
Tectite Classic
product type
T26
UNSPS
40174601
scip
054b35f0-c9aa-49ba-ba74-e8b35a8de72e
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
Yes
label
Multi-part
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Connection 3
value
Insert (push-fitting)
label
Flange compression class
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Brass
label
High tensile strength
value
Yes
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-24°C - 95°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 203°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
