group: T21

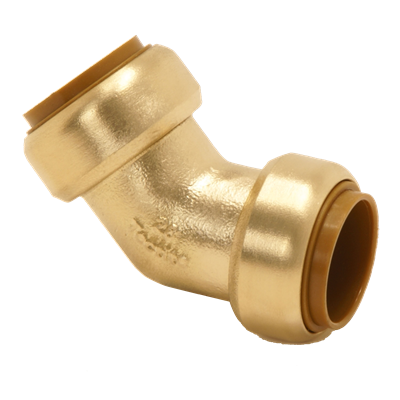

The VSH Tectite Classic T21 is a 45° obtuse elbow with two push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
residential
commercial building
BSI Kitemark
CSN
DVGW Wasser
EMI
ETA
KIWA
ÖVGW Wasser
RISE
SINTEF
STF
ÜA
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
55x28x28 mm
weight
0.05 kg
packaging
bag (10 pce)
gtin
05022050455406
item number
size
22
dimensions
70x35x35 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050455512
item number
size
28
dimensions
80x45x45 mm
weight
0.14 kg
packaging
bag (5 pce)
gtin
05022050455543
item number

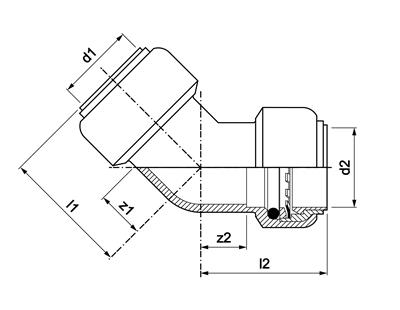

size
d1
DN1
l1
z1
d2
DN2
l2
z2
angle
color
brass
materials
brass (CW602N (DZR), CW626N (DZR))
finishing
none
shape
Elbow (45º)
connection type
push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Tectite Classic
product type
T21
UNSPS
40172801
scip
054b35f0-c9aa-49ba-ba74-e8b35a8de72e
image | png
T21
diagram | jpg
Diagram
installation- & maintenance document | pdf
VSH Tectite installation instructions
certifications | pdf
20807_ETA_Tectite_Classic_10-28mm_PEX_23
certifications | pdf
CSN Tectite PRO/Classic/Sprint/316
certifications | pdf
ETA_classic_and_sprint_VA_1.22_19348
certifications | pdf
Pegler_BSI_All_Fittings_KM_15121
certifications | pdf
Tectite Push KIWA
certifications | pdf
VSH Tectite ACS
certifications | pdf
VSH Tectite Classic & Pro WRAS
link to sheet | pdf
VSH Tectite Classic SDS
certifications | pdf
VSH Tectite Classic STF
certifications | pdf
ATec_14.1_16-2241_V1
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
45°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 95°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 203°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
