group: T14

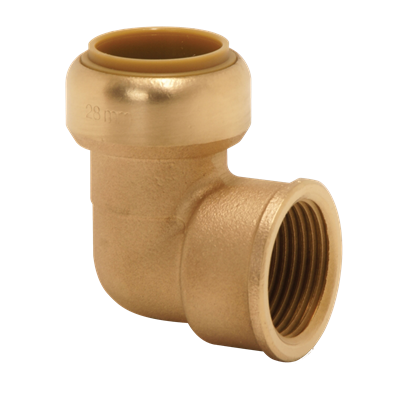

The VSH Tectite Classic T14 is a 90° female elbow with a push fit and female parallel thread end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
residential
commercial building
BSI Kitemark
DVGW Wasser
EMI
ETA
KIWA
ÖVGW Wasser
QB (CSTBat)
RISE
STF
ÜA
item number
size
weight
dimensions
packaging
gtin
item number
size
12xG1/2"
weight
0.06 kg
dimensions
48x25x38 mm
packaging
bag (10 pce)
gtin
05022050012227
item number
size
12xG3/8"
weight
0.06 kg
dimensions
40x20x35 mm
packaging
bag (10 pce)
gtin
05022050012203
item number
size
14xG1/2"
weight
0.07 kg
dimensions
48x27x40 mm
packaging
bag (10 pce)
gtin
05022050012272
item number
size
15xG1/2"
weight
0.07 kg
dimensions
45x28x40 mm
packaging
bag (10 pce)
gtin
05022050012289
item number
size
16xG1/2"
weight
0.06 kg
dimensions
50x25x40 mm
packaging
bag (10 pce)
gtin
05022050197238
item number
size
18xG1/2"
weight
0.07 kg
dimensions
50x30x40 mm
packaging
bag (5 pce)
gtin
05022050012333
item number
size
18xG3/4"
weight
0.11 kg
dimensions
55x33x50 mm
packaging
bag (5 pce)
gtin
05022050012401
item number
size
22xG3/4"
weight
0.14 kg
dimensions
60x35x55 mm
packaging
bag (5 pce)
gtin
05022050012418
item number
size
28xG1"
weight
0.19 kg
dimensions
70x40x60 mm
packaging
bag (2 pce)
gtin
05022050012425
item number
size
d1
DN1
l1
z1
DN2
l2
angle
item number
45596
size
12xG1/2"
d1
12.0
DN1
DN10
l1
25
z1
11
DN2
1/2" (DN15)
l2
34
angle
90
item number
45594
size
12xG3/8"
d1
12.0
DN1
DN10
l1
24
z1
13
DN2
3/8" (DN10)
l2
34
angle
90
item number
45600
size
14xG1/2"
d1
14.0
DN1
DN15
l1
25
z1
11
DN2
1/2" (DN15)
l2
34
angle
90
item number
45606
size
15xG1/2"
d1
15.0
DN1
DN15
l1
25
z1
11
DN2
1/2" (DN15)
l2
34
angle
90
item number
45608
size
16xG1/2"
d1
16.0
DN1
DN15
l1
25
z1
12
DN2
1/2" (DN15)
l2
34
angle
90
item number
45614
size
18xG1/2"
d1
18.0
DN1
DN15
l1
25
z1
11
DN2
1/2" (DN15)
l2
36
angle
90
item number
45615
size
18xG3/4"
d1
18.0
DN1
DN15
l1
33
z1
18
DN2
3/4" (DN20)
l2
40
angle
90
item number
45620
size
22xG3/4"
d1
22.0
DN1
DN20
l1
33
z1
18
DN2
3/4" (DN20)
l2
42
angle
90
item number
45622
size
28xG1"
d1
28.0
DN1
DN25
l1
37
z1
21
DN2
1" (DN25)
l2
49
angle
90
color
brass
materials
brass (CW511L (lead-free), CW602N (DZR), CW617N, CW626N (DZR))
finishing
none
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
shape
Elbow, reducer (90º)
connection type
push, G - female thread gas cylindrical (BSPP)
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Tectite Classic
product type
T14
UNSPS
40172801
scip
054b35f0-c9aa-49ba-ba74-e8b35a8de72e
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
Yes
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 95°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 203°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
