group: T1

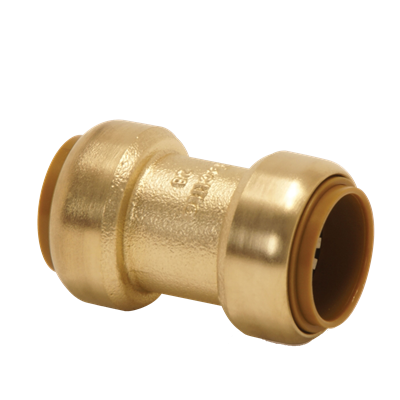

The VSH Tectite Classic T1 is a straight coupling with 2 push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
residential
commercial building
BSI Kitemark
KIWA
SINTEF
STF
WRAS
item number
size
weight
dimensions
packaging
gtin
item number
size
10
weight
0.03 kg
dimensions
45x20x20 mm
packaging
bag (10 pce)
gtin
05022050009203
item number
size
12
weight
0.04 kg
dimensions
45x20x20 mm
packaging
bag (10 pce)
gtin
05022050009234
item number
size
14
weight
0.05 kg
dimensions
55x25x40 mm
packaging
bag (10 pce)
gtin
05022050009258
item number
size
15
weight
0.04 kg
dimensions
48x16x26 mm
packaging
bag (10 pce)
gtin
05022050009265
item number
size
16
weight
0.05 kg
dimensions
50x25x25 mm
packaging
bag (10 pce)
gtin
05022050009289
item number
size
18
weight
0.05 kg
dimensions
50x20x30 mm
packaging
bag (5 pce)
gtin
05022050009296
item number
size
20
weight
0.07 kg
dimensions
60x35x35 mm
packaging
bag (5 pce)
gtin
05022050009302
item number
size
22
weight
0.08 kg
dimensions
55x30x30 mm
packaging
bag (5 pce)
gtin
05022050009319
item number
size
28
weight
0.12 kg
dimensions
65x30x40 mm
packaging
bag (5 pce)
gtin
05022050009326
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
item number
45108
size
10
d1
10.0
DN1
DN10
l1
25
z1
1
d2
10.0
DN2
DN10
l2
25
z2
1
item number
45110
size
12
d1
12.0
DN1
DN10
l1
25
z1
1
d2
12.0
DN2
DN10
l2
25
z2
1
item number
45112
size
14
d1
14.0
DN1
DN15
l1
25
z1
1
d2
14.0
DN2
DN15
l2
25
z2
1
item number
45114
size
15
d1
15.0
DN1
DN15
l1
25
z1
1
d2
15.0
DN2
DN15
l2
25
z2
1
item number
45116
size
16
d1
16.0
DN1
DN15
l1
25
z1
1
d2
16.0
DN2
DN15
l2
25
z2
1
item number
45118
size
18
d1
18.0
DN1
DN15
l1
25
z1
1
d2
18.0
DN2
DN15
l2
25
z2
1
item number
45120
size
20
d1
20.0
DN1
DN20
l1
30
z1
1
d2
20.0
DN2
DN20
l2
30
z2
1
item number
45121
size
22
d1
22.0
DN1
DN20
l1
30
z1
1
d2
22.0
DN2
DN20
l2
30
z2
1
item number
45123
size
28
d1
28.0
DN1
DN25
l1
33
z1
1
d2
28.0
DN2
DN25
l2
33
z2
1
color
brass
materials
brass (CW511L (lead-free), CW602N (DZR), CW625N (DZR))
finishing
none
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
shape
straight
connection type
push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Tectite Classic
product type
T1
UNSPS
40172601
scip
054b35f0-c9aa-49ba-ba74-e8b35a8de72e
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Working length connection 1
value
1mm
label
Working length connection 1 (imperial)
value
0.04"
label
Working length connection 2
value
1mm
label
Working length connection 2 (imperial)
value
0.04"
label
Medium temperature (continuous)
value
-24°C - 95°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 203°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
